| Vieser no | 52610 |
| EAN | 6418685526106 |
| LVI | 3315956 |
| Material | Polypropylene (PP) |
| Packaging (box/pallet) | 20/160 |
| Discharge | 1.6 l/s |

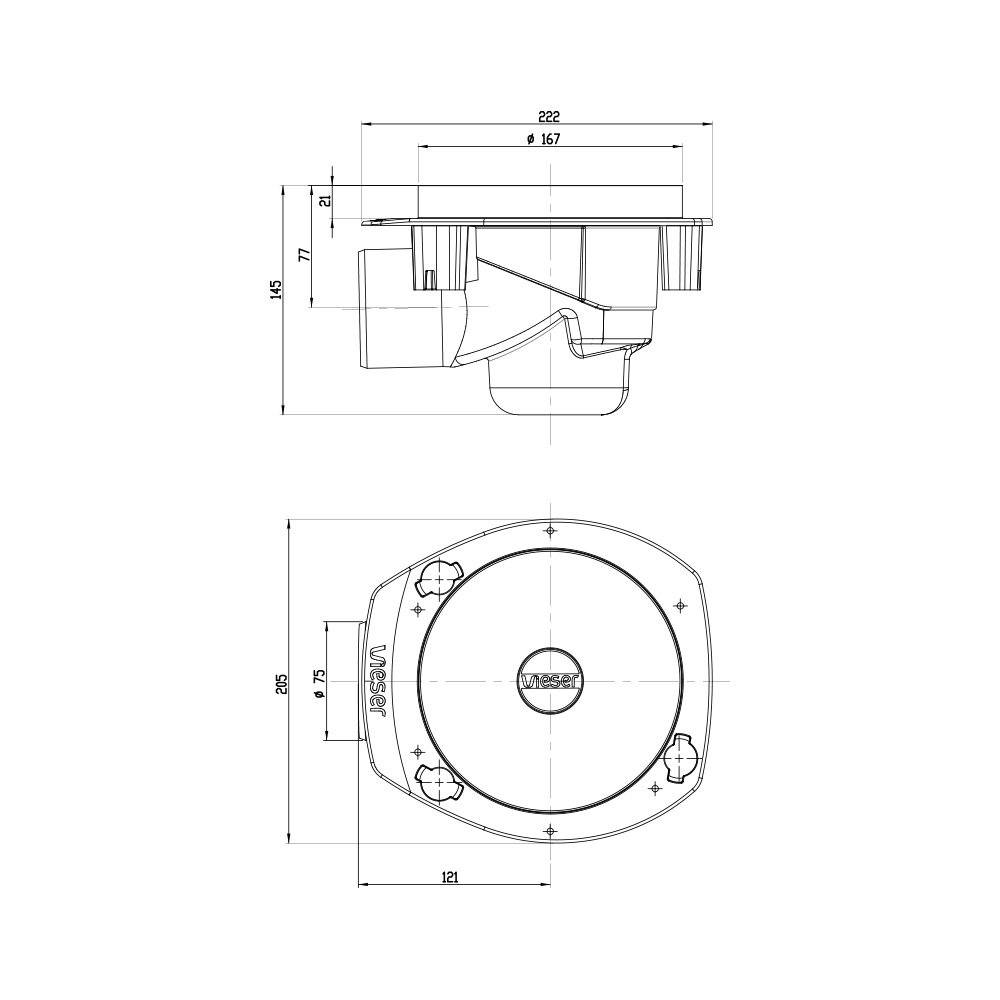

| Product dimensions | 205 x 222 x 145mm |
| Product weight | 0.5 kg |
| Floor material | Tile, Plastic mat, Mass |

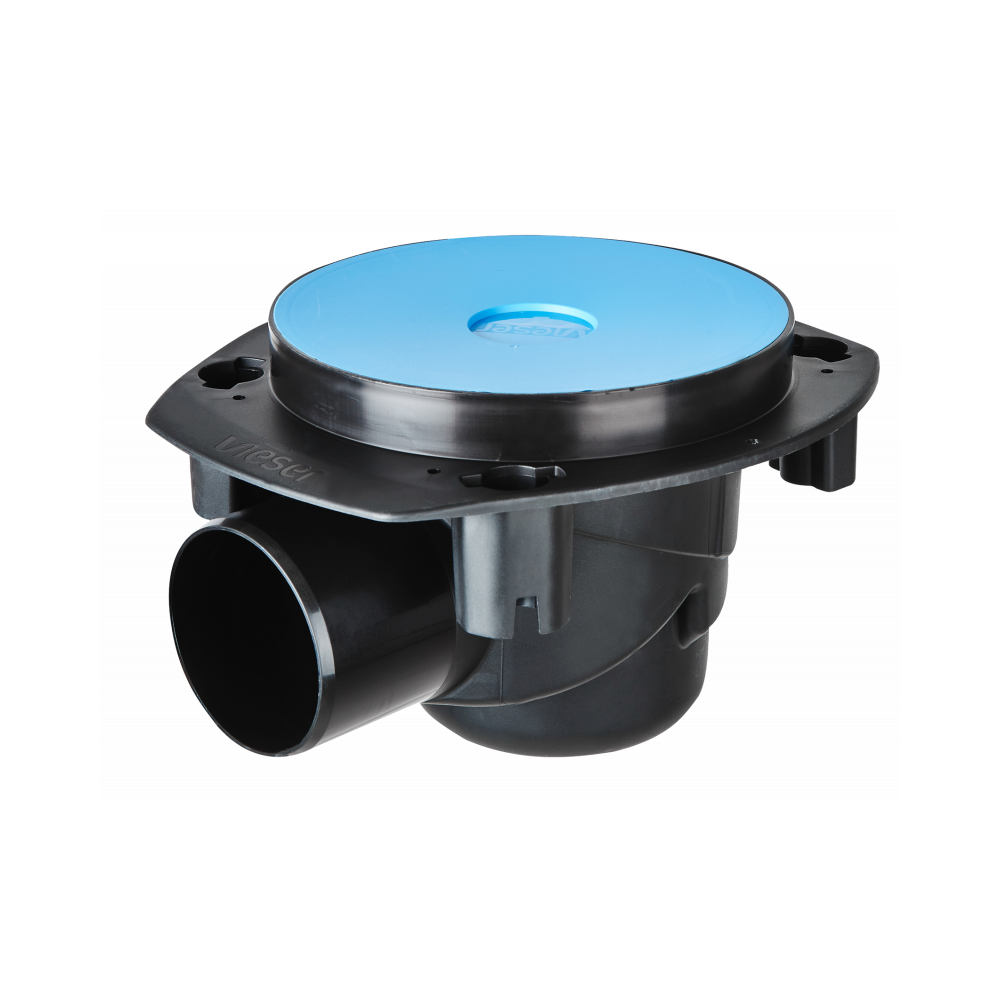

Vieser One floor drain DN75
The Vieser One horizontal floor drain DN75 has a 75 mm outlet and is compatible with wood and concrete floors.
- Type approved

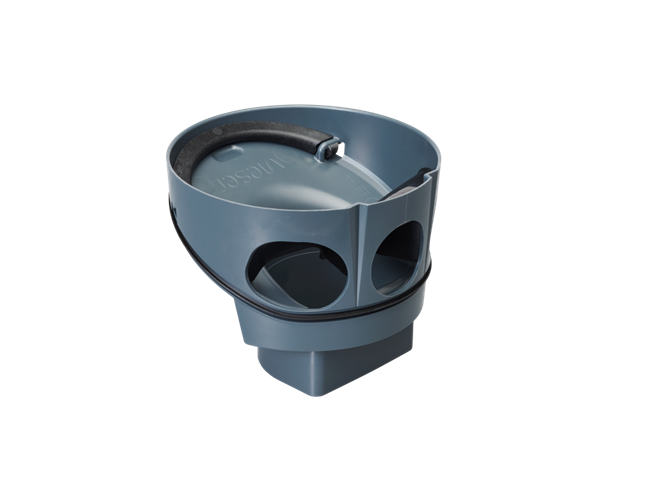

- Removable water trap

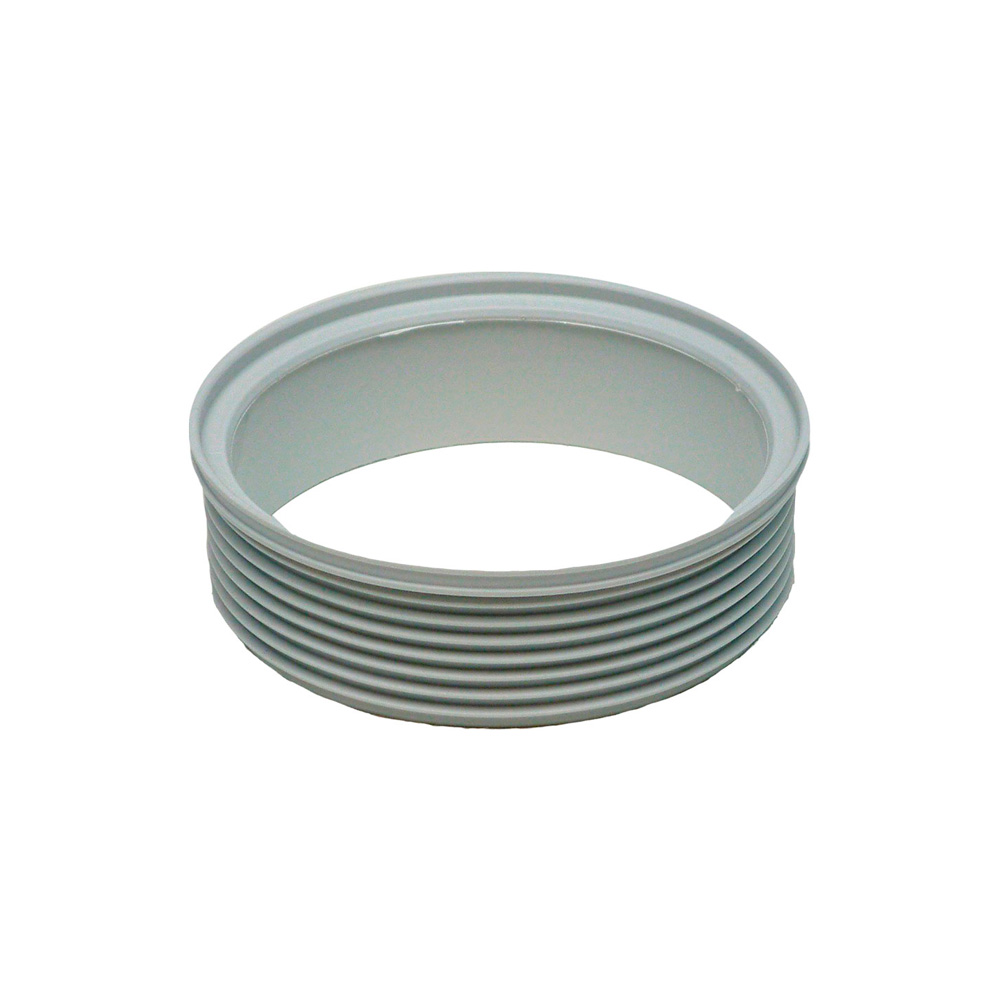

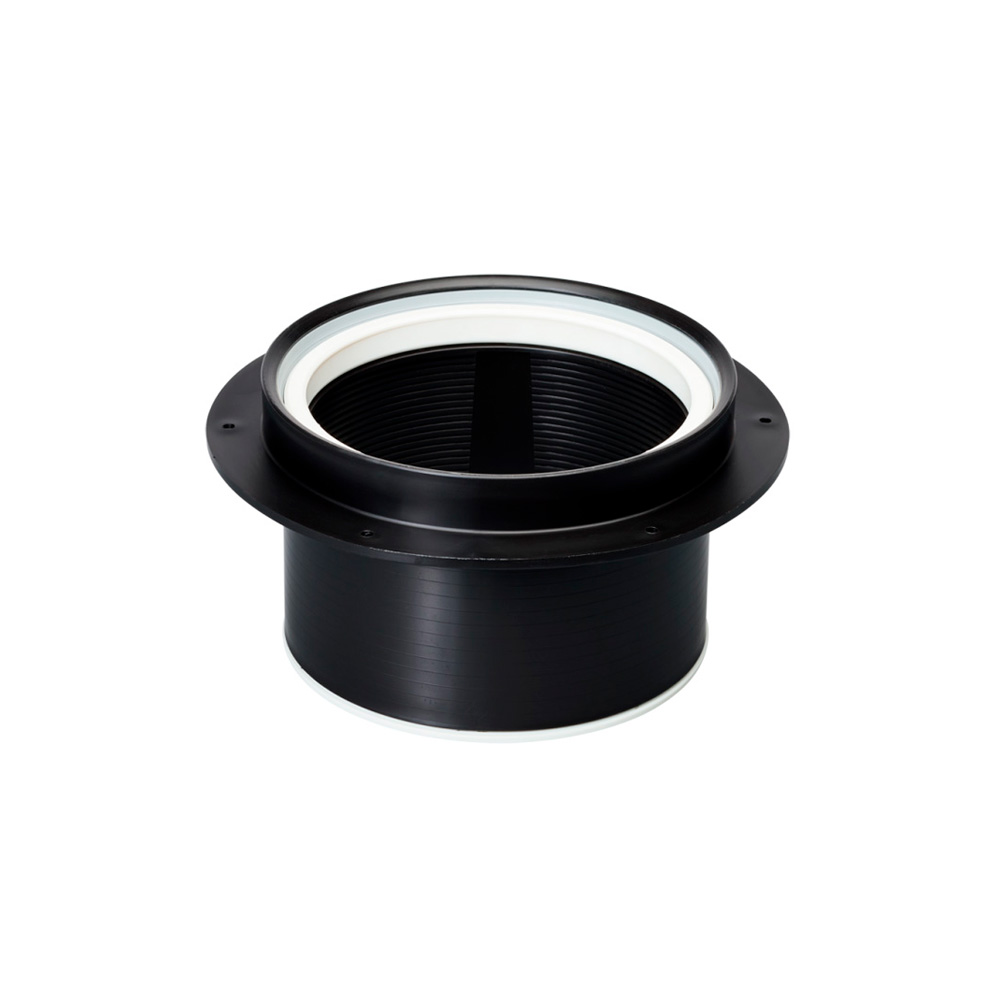

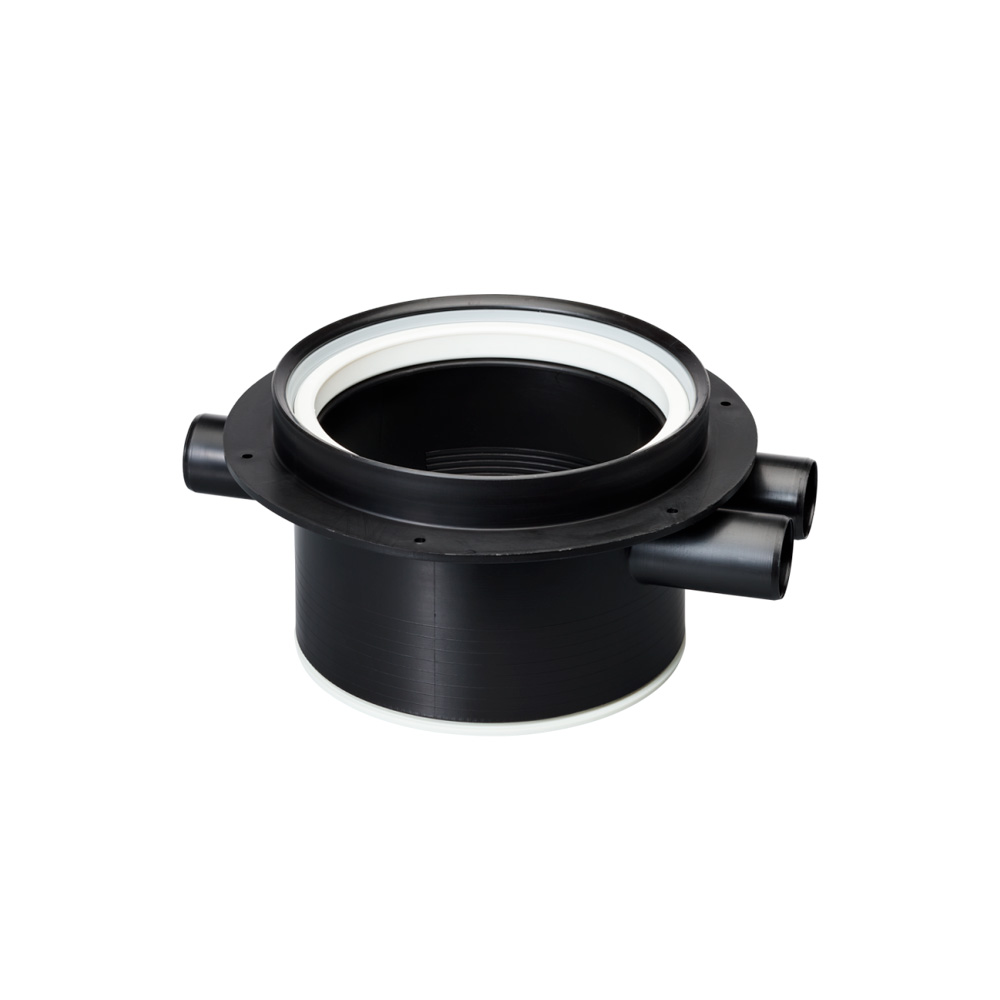

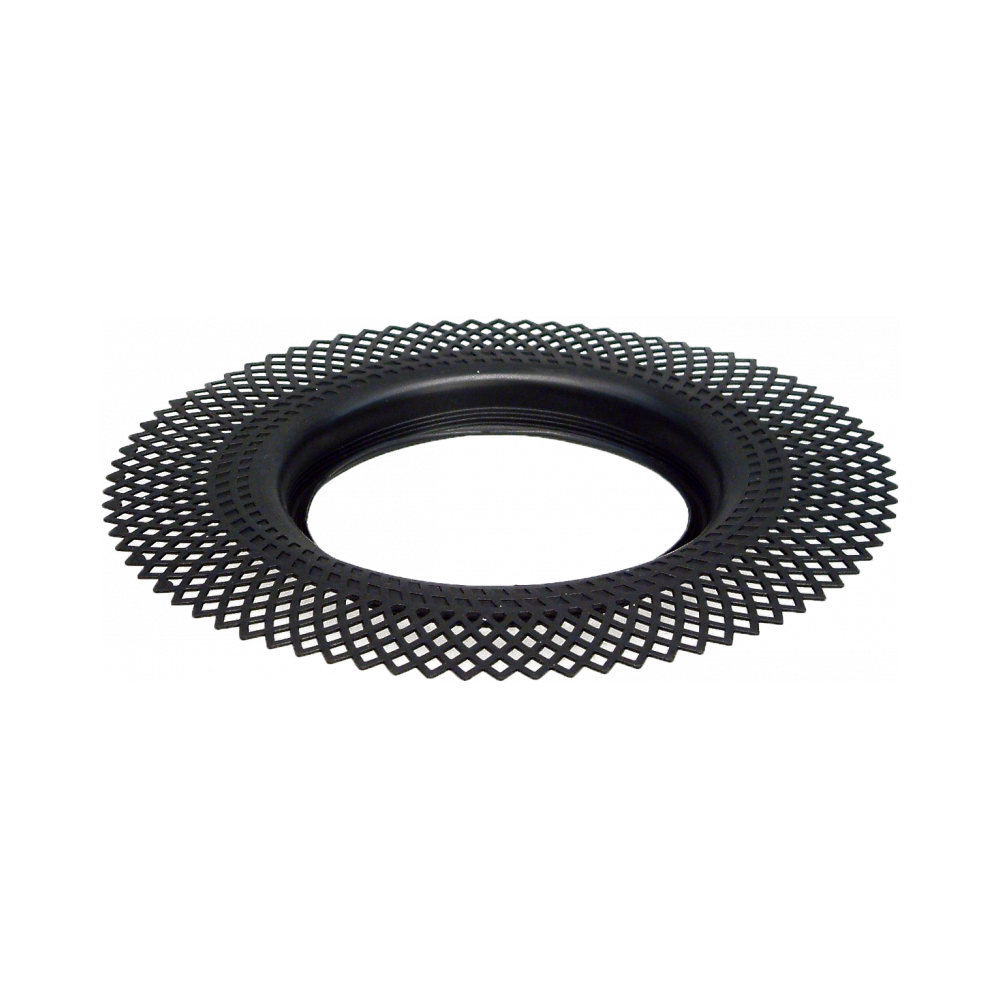

- Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

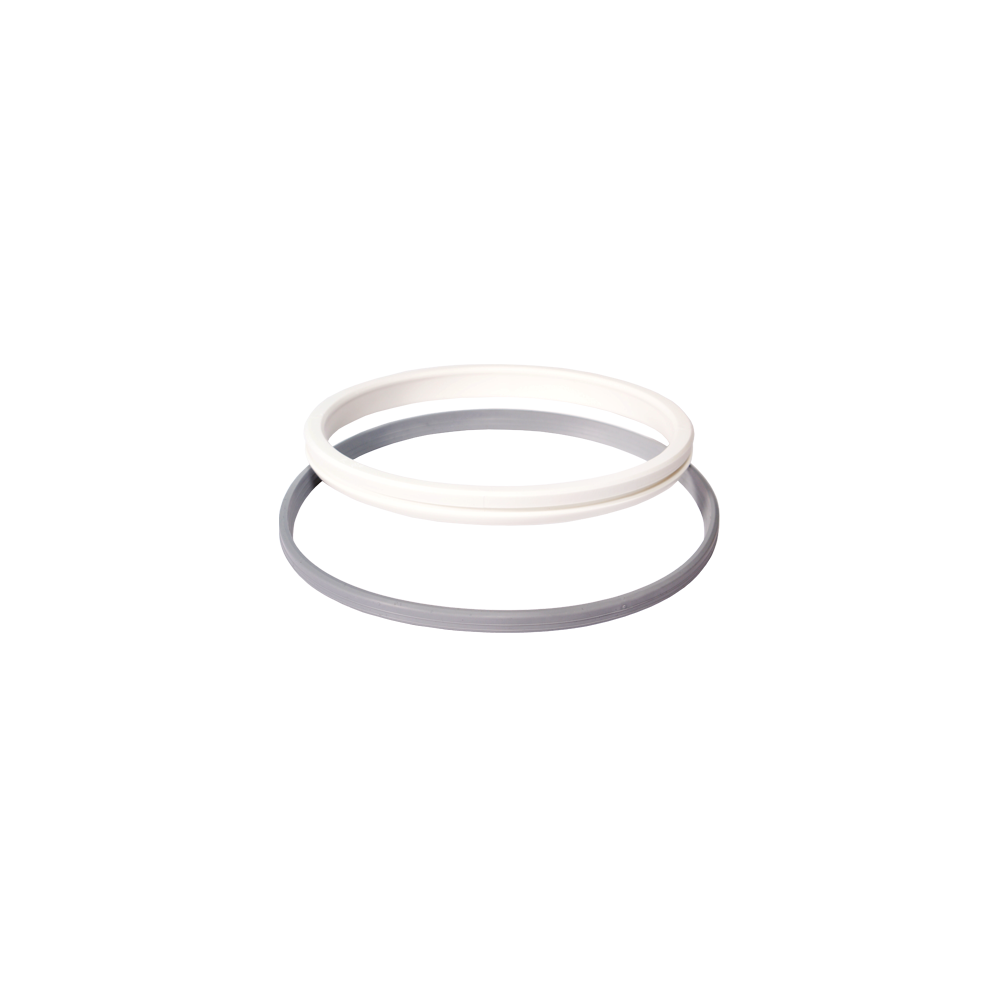

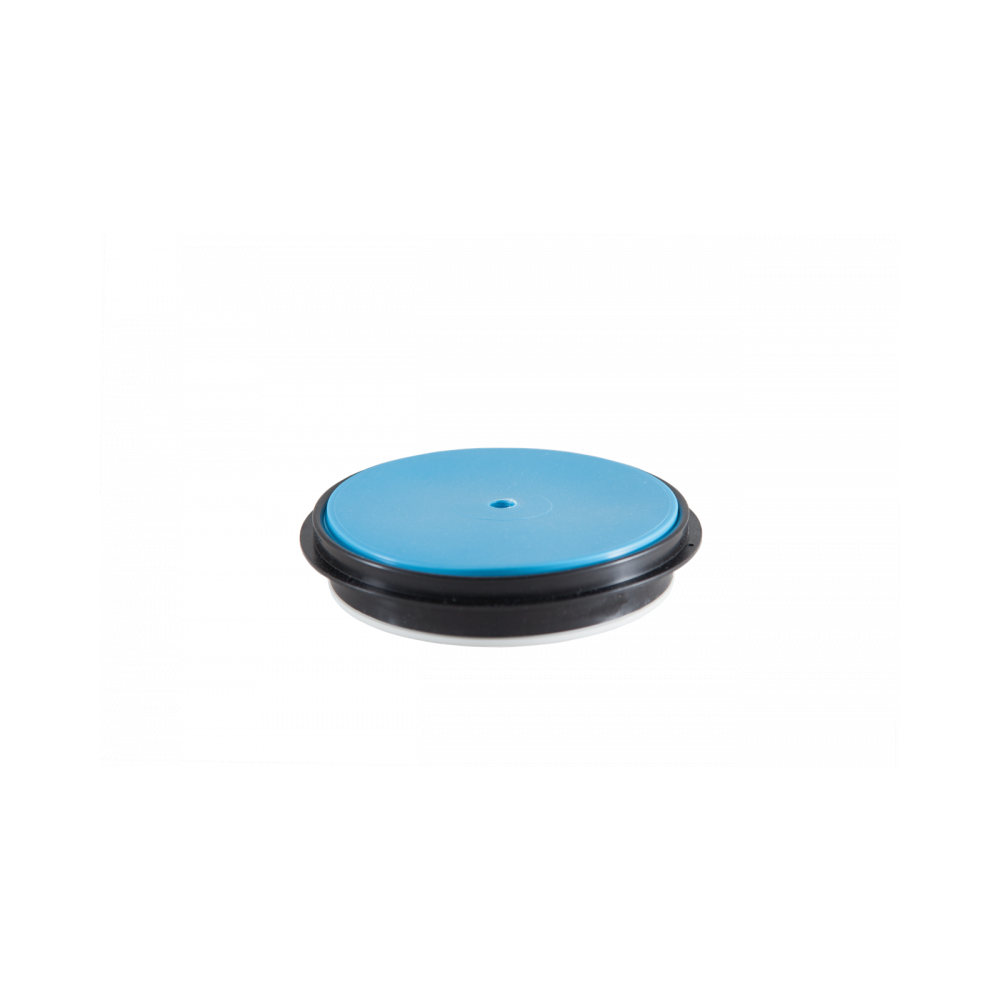

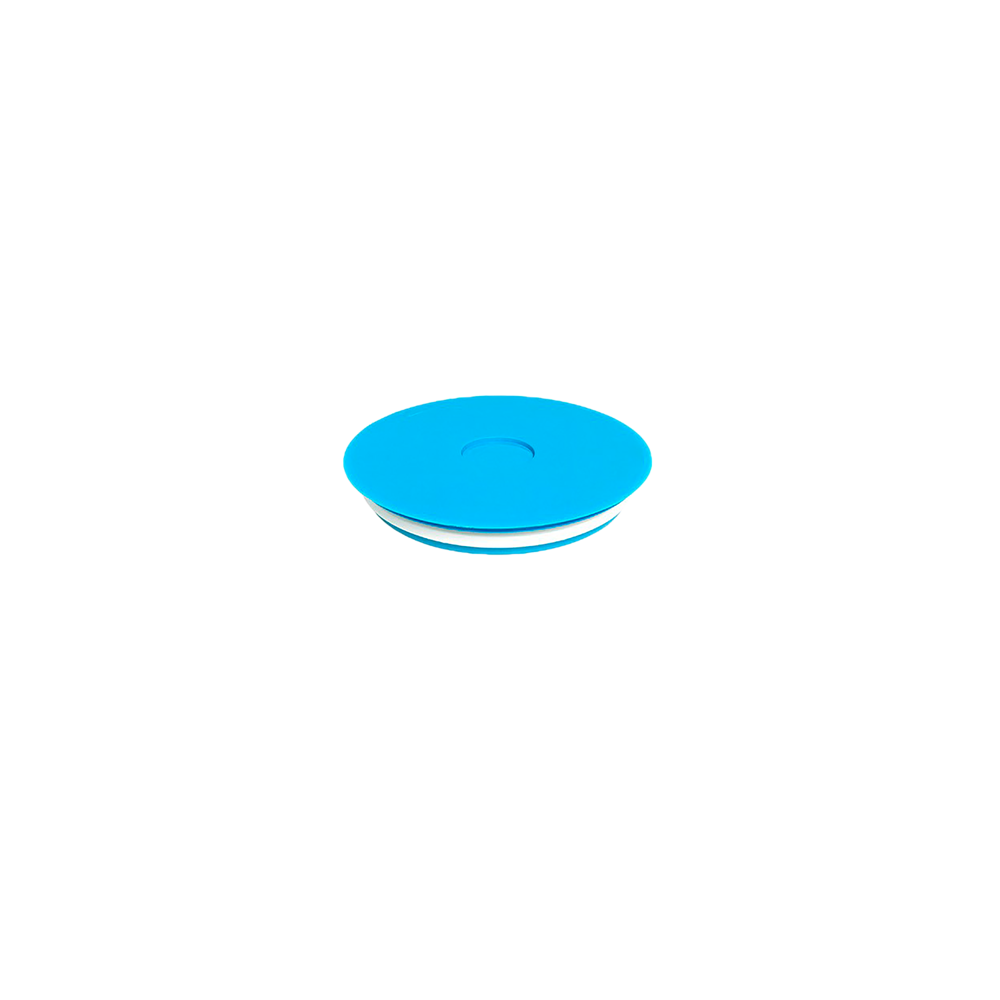

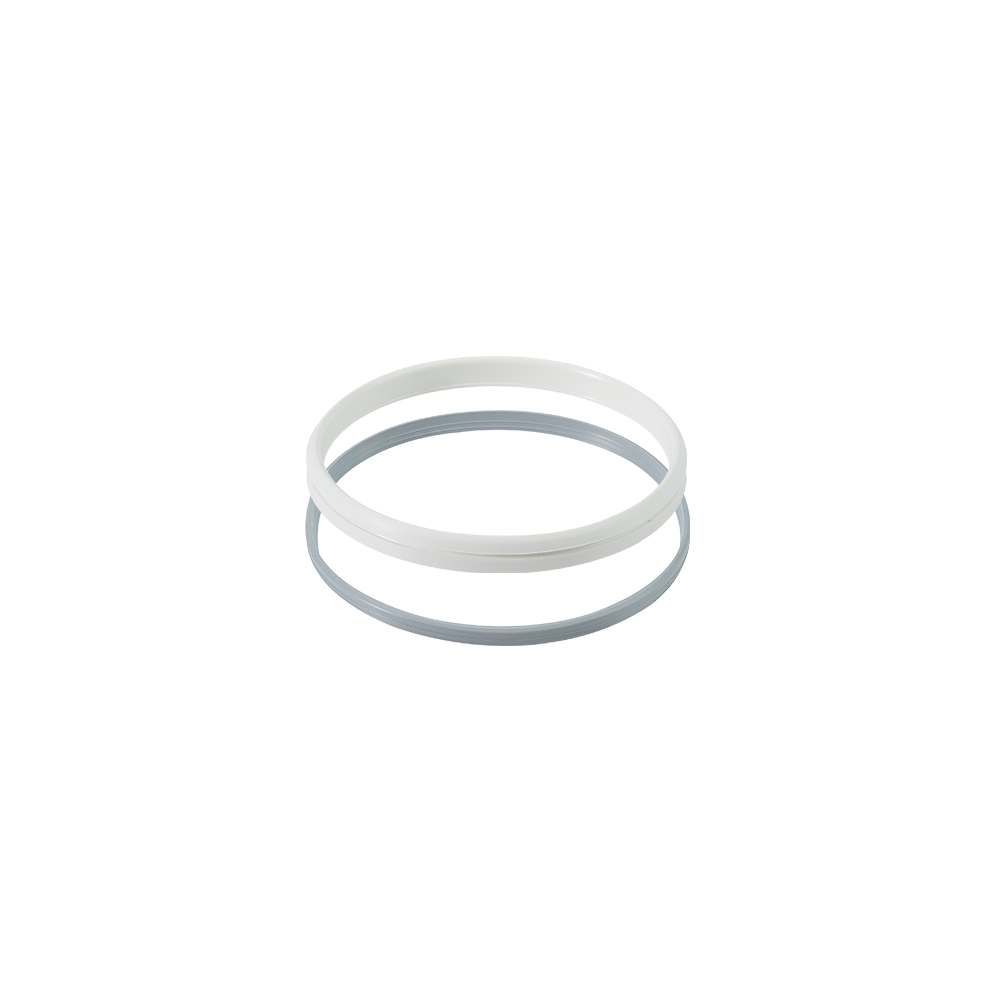

The package includes a drain, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring.
Please see the structural drawings for different floor structures in our material bank.
Read more

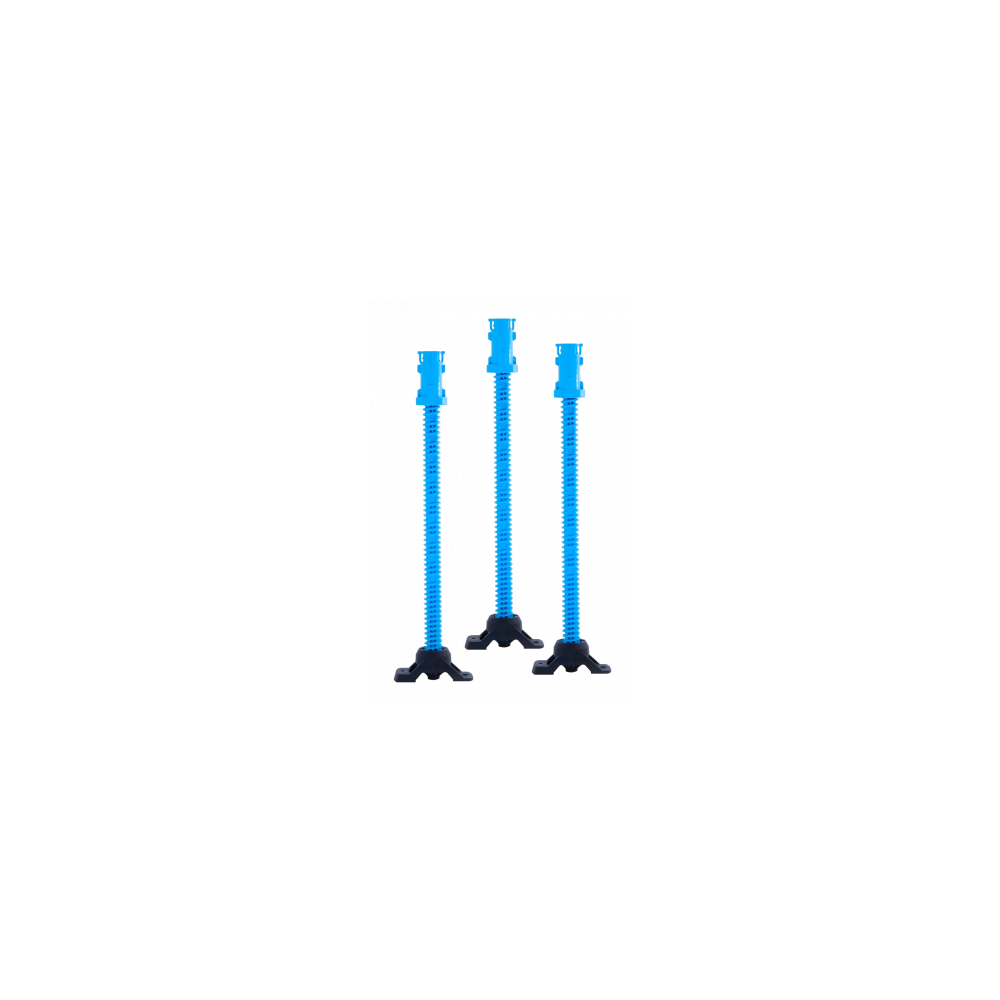

As a spare part, a support leg spare part package is available (HVAC no 3315948). With the support legs, the floor drain can be raised up to 345 mm.
