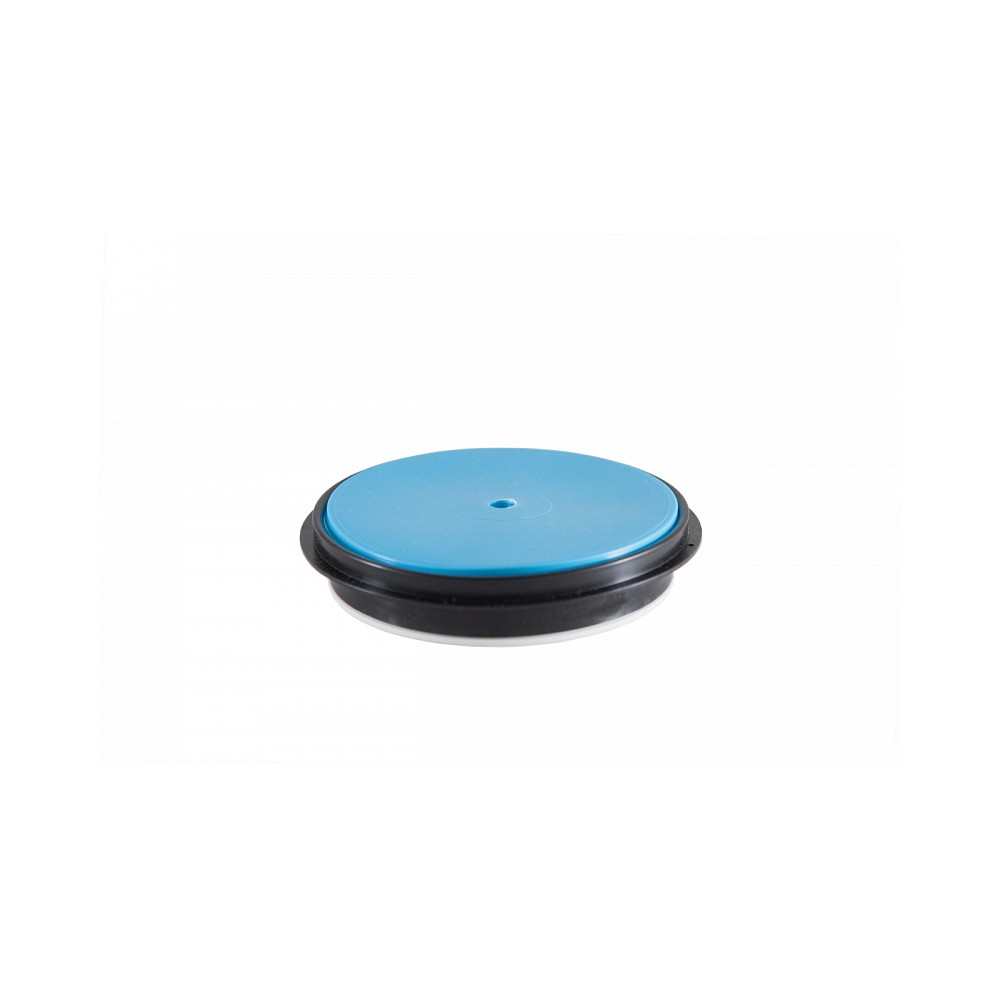

Vieser low extension ring 12mm

The Vieser low extension ring is meant to be used with Vieser floor drains below the waterproofing. The low extension ring is suitable for floor slope adjustments, renovations and installation of underfloor electric heating.

• Type approved

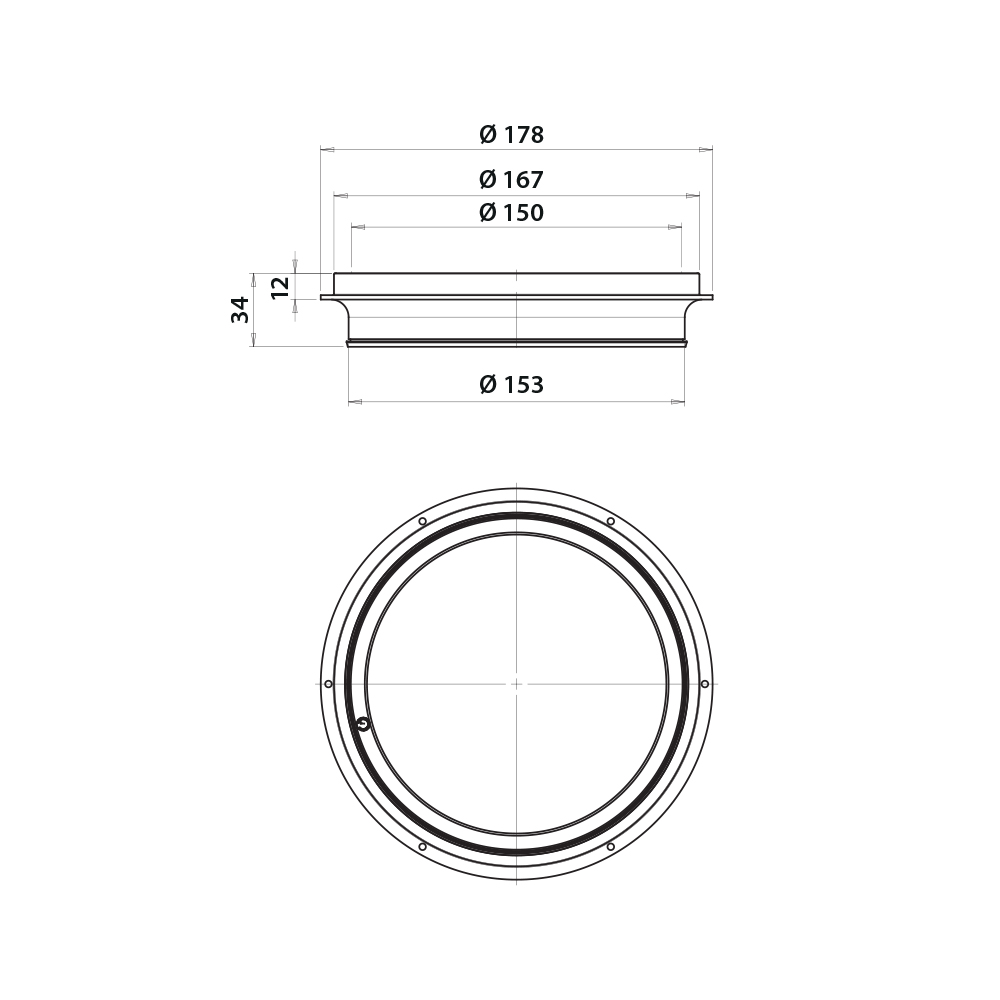

• The low extension ring raises the floor drain by 12 mm.
• A low extension ring must always be the uppermost extension ring, and it cannot be extended with another extension ring.
• Compatible with all Vieser floor drains

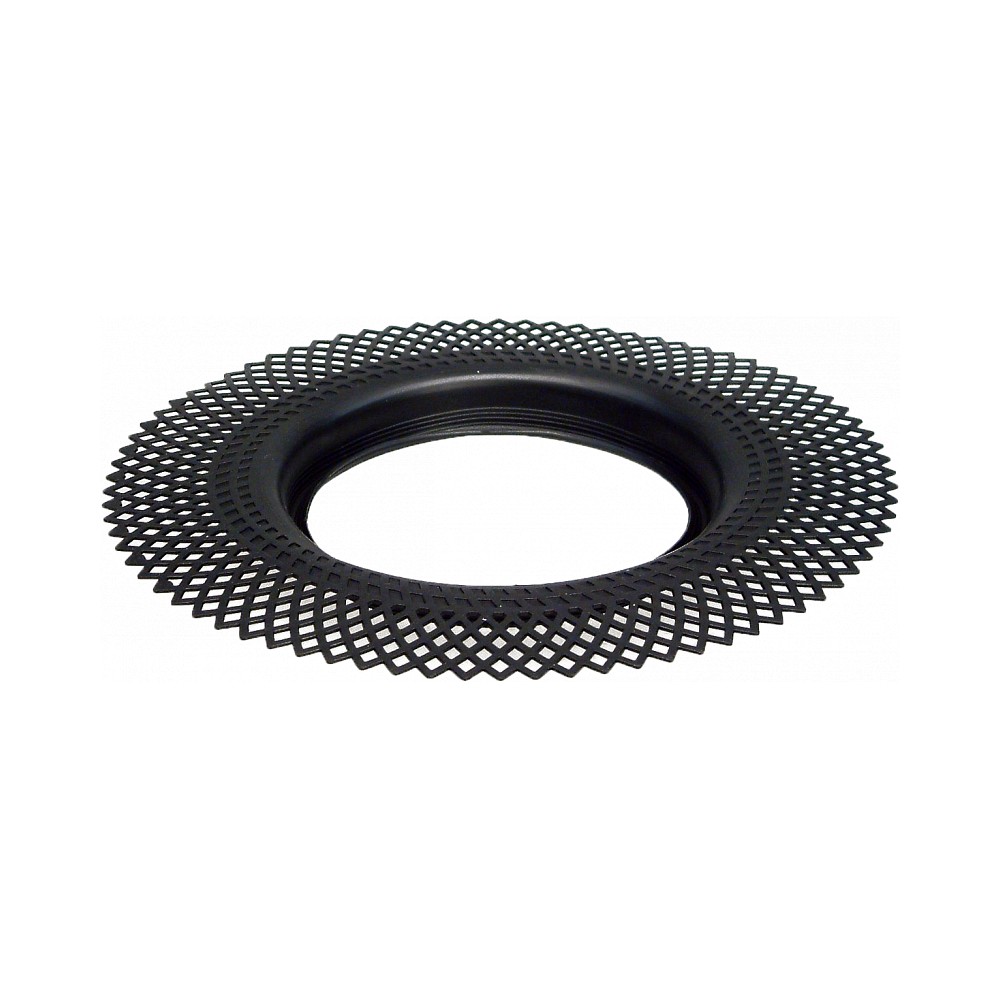

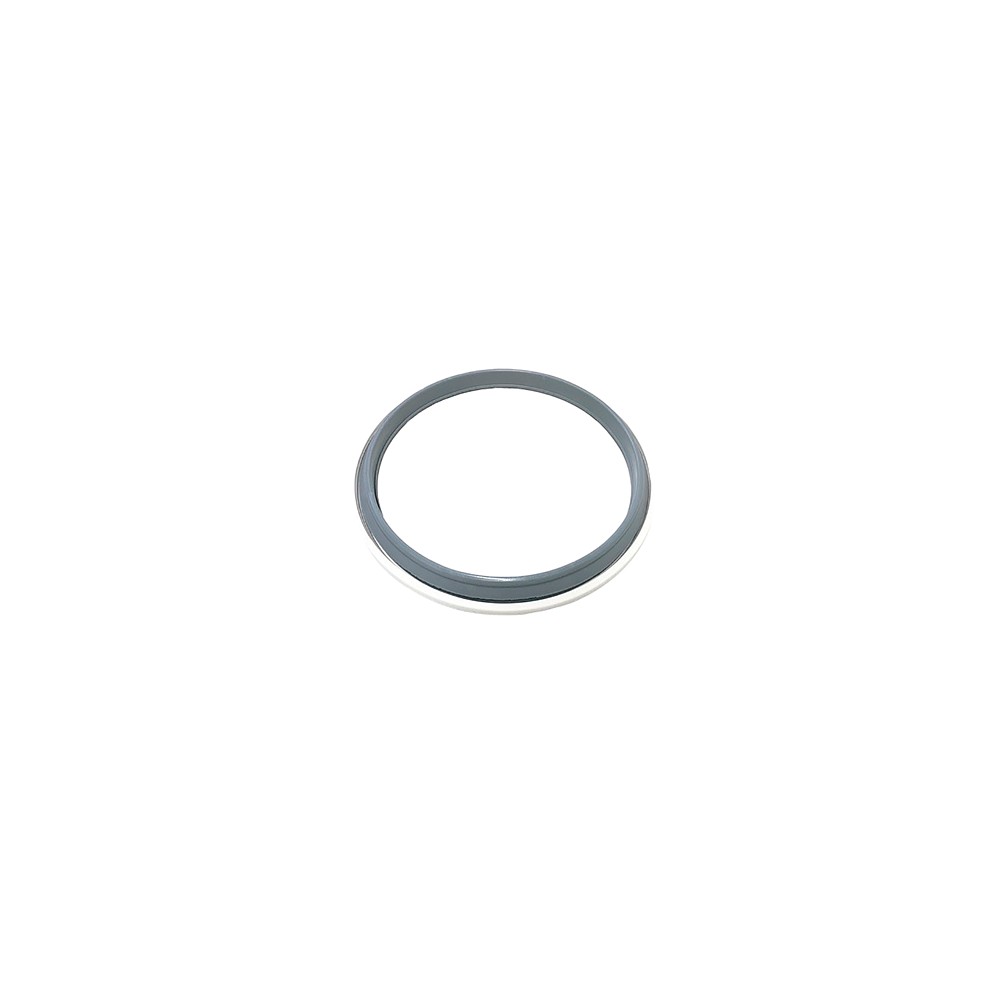

The package contains an extension ring, white lip seal, grey clamping ring and white support ring.
