| Vieser no | 6004308 |
| EAN | 6430066742172 |
| LVI | 3317303 |
| Material | Polypropylene (PP) |
| Packaging (box/pallet) | 15/120 |
| Discharge | 1.4 l/s |
| Product dimensions | 220 x 220 x 145mm |
| Product weight | 0.5 kg |
| Floor material | Tile, Plastic mat, Mass |

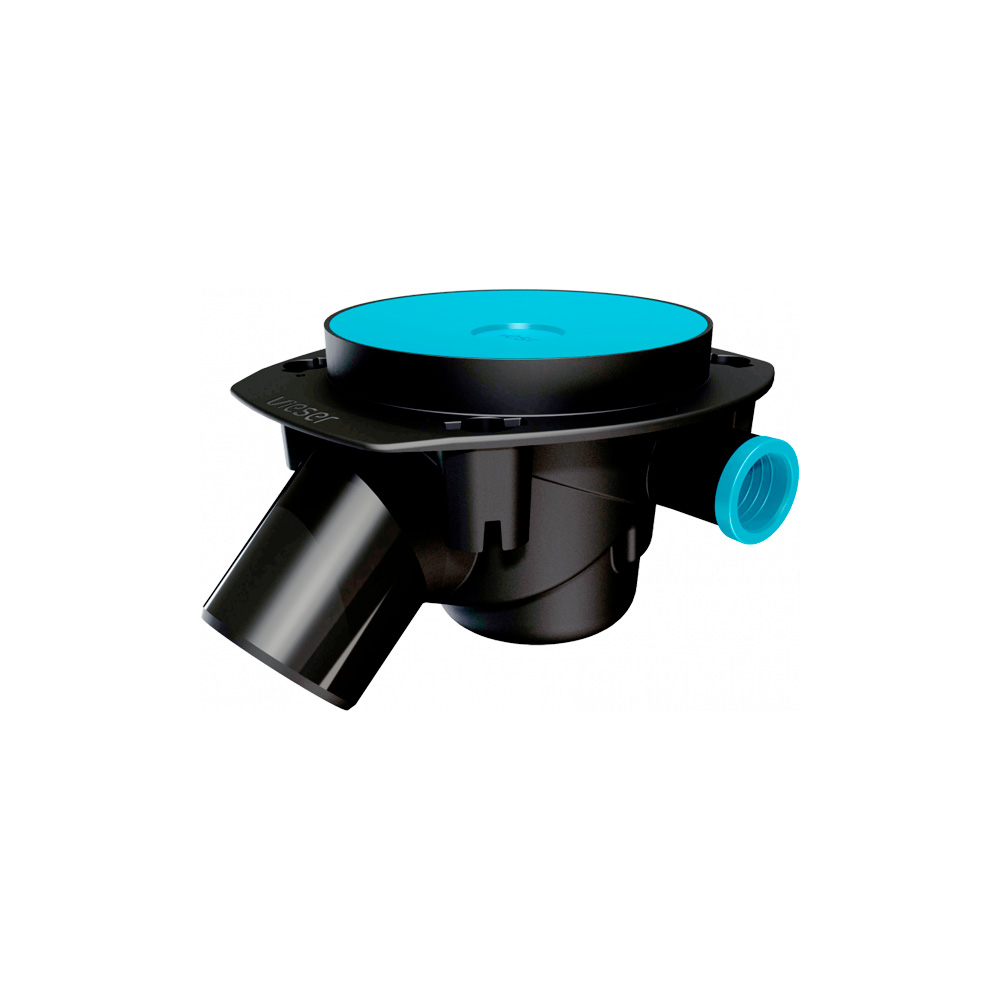

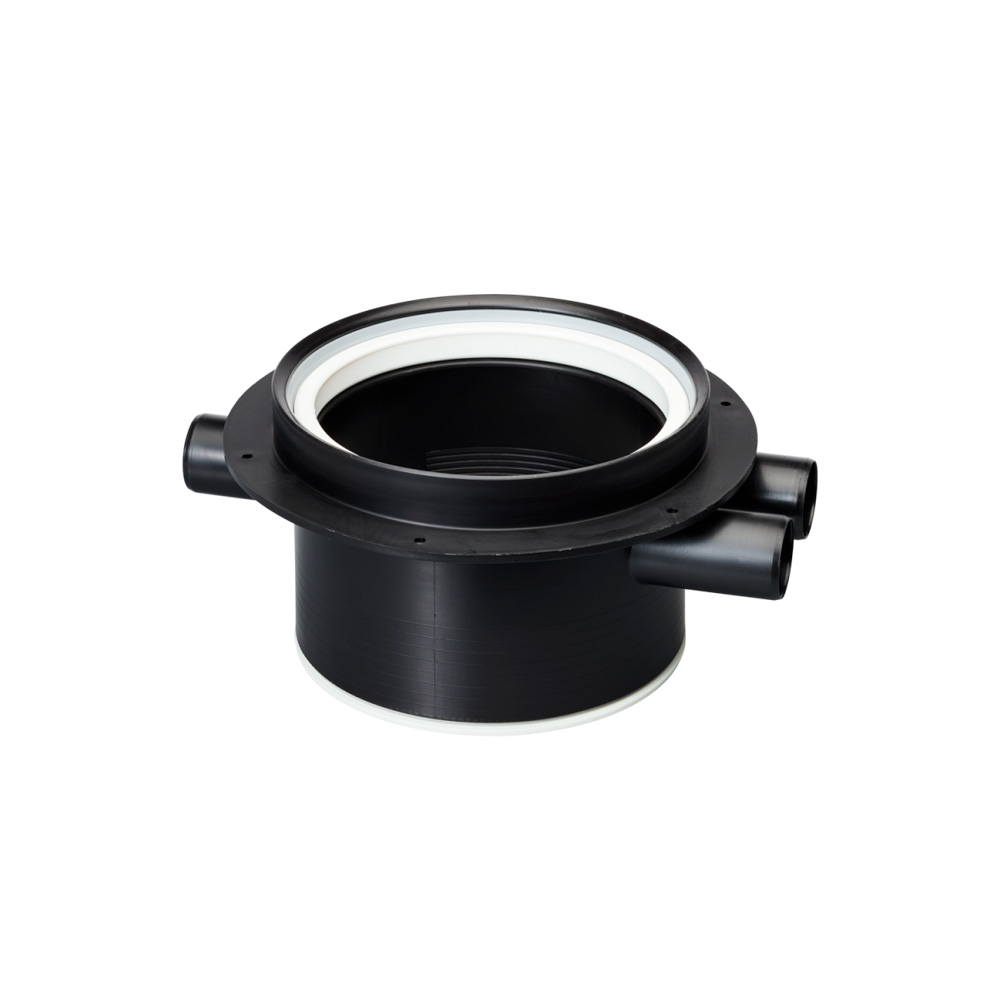

Vieser One floor drain 45° DN75 3×32/40
The Vieser One corner floor drain 45° DN75 has a 75 mm outlet and three 32/40 mm openable side inlets. Compatible with concrete and wood floors.
- Type approved

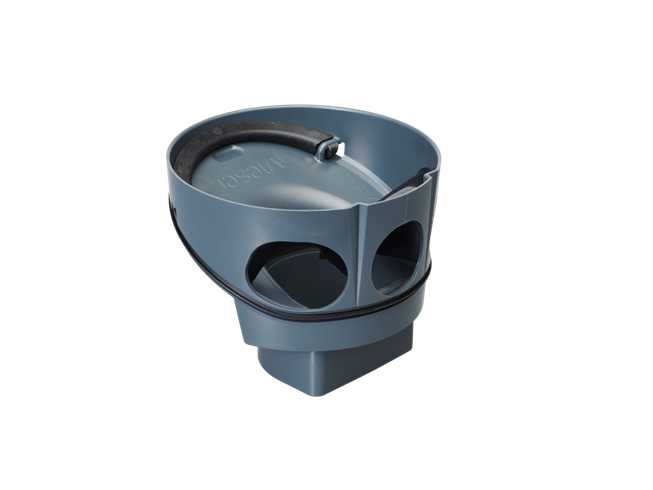

- Removable water trap

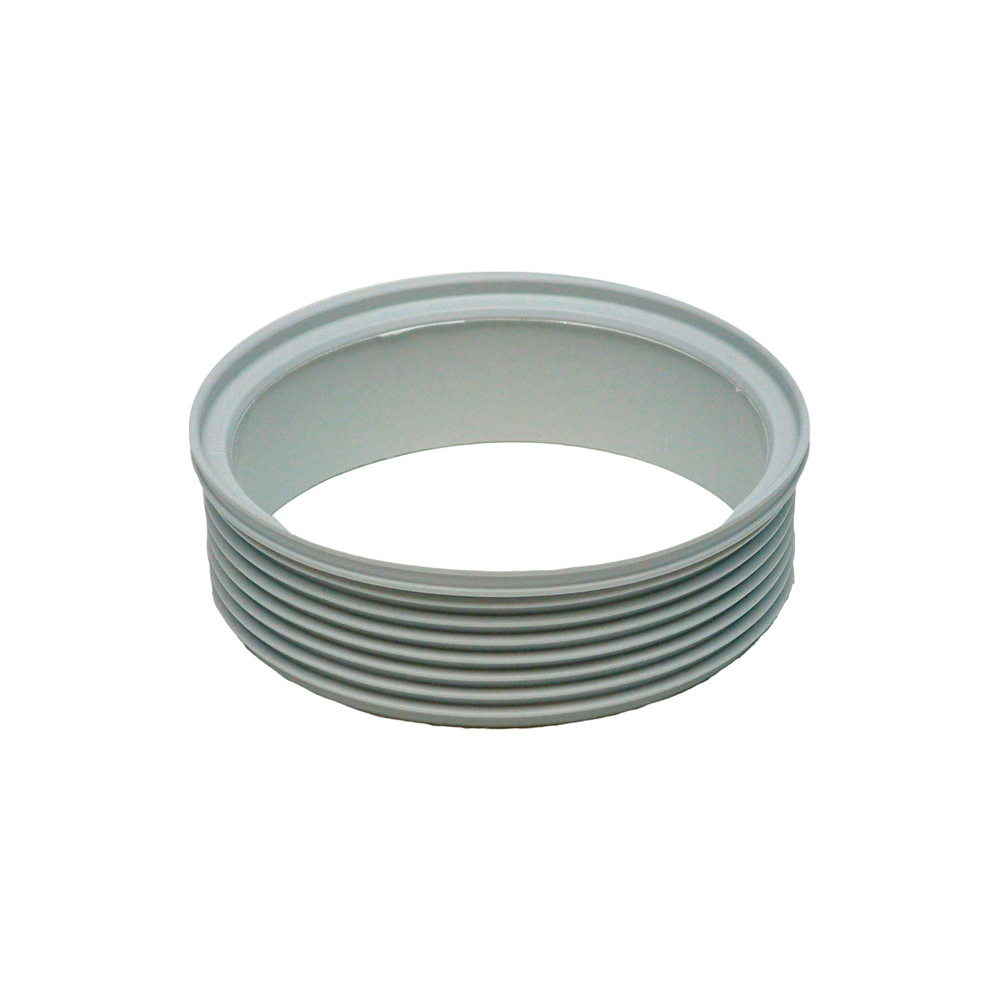

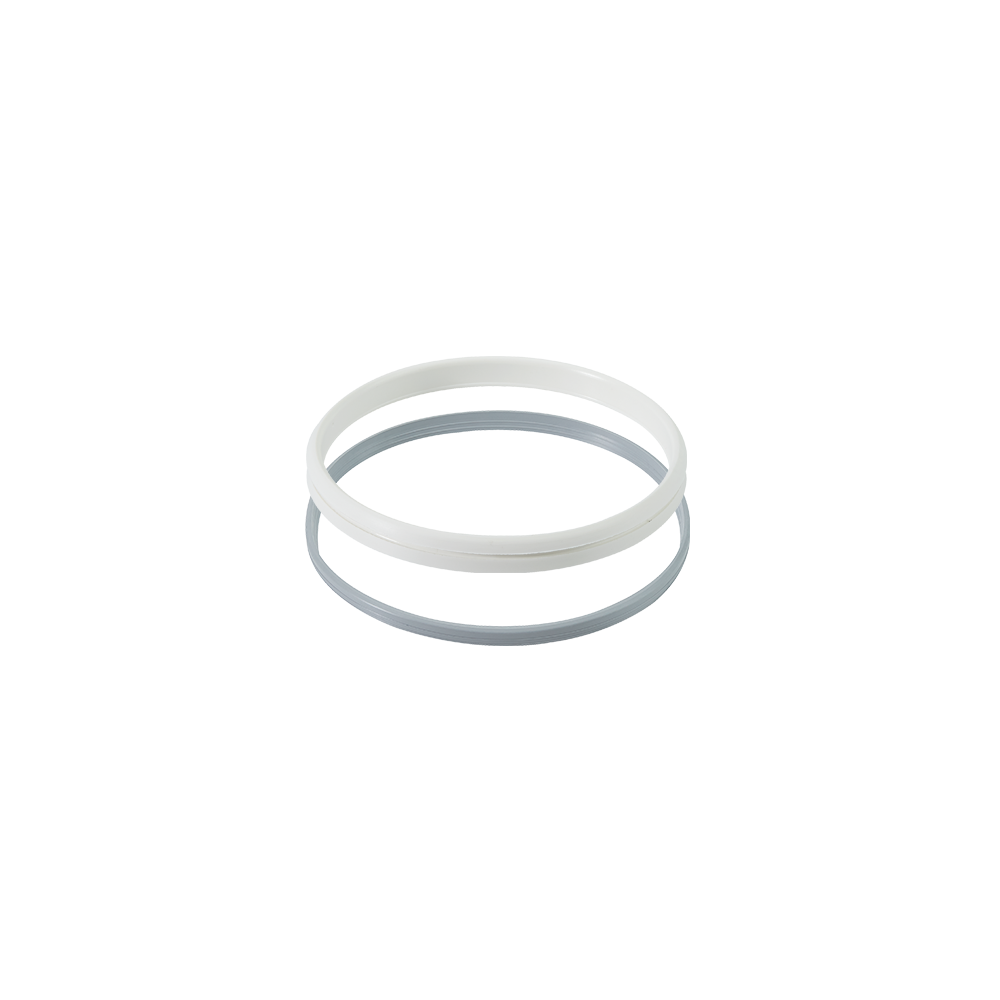

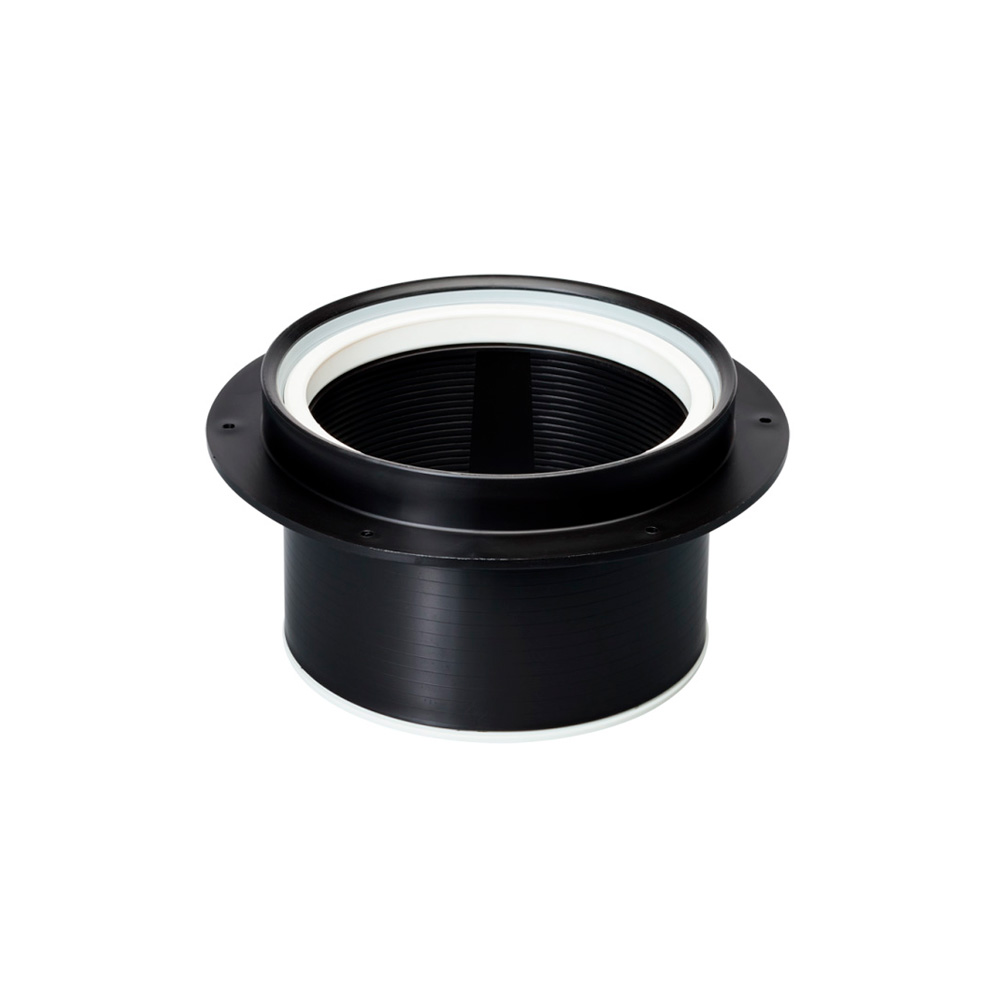

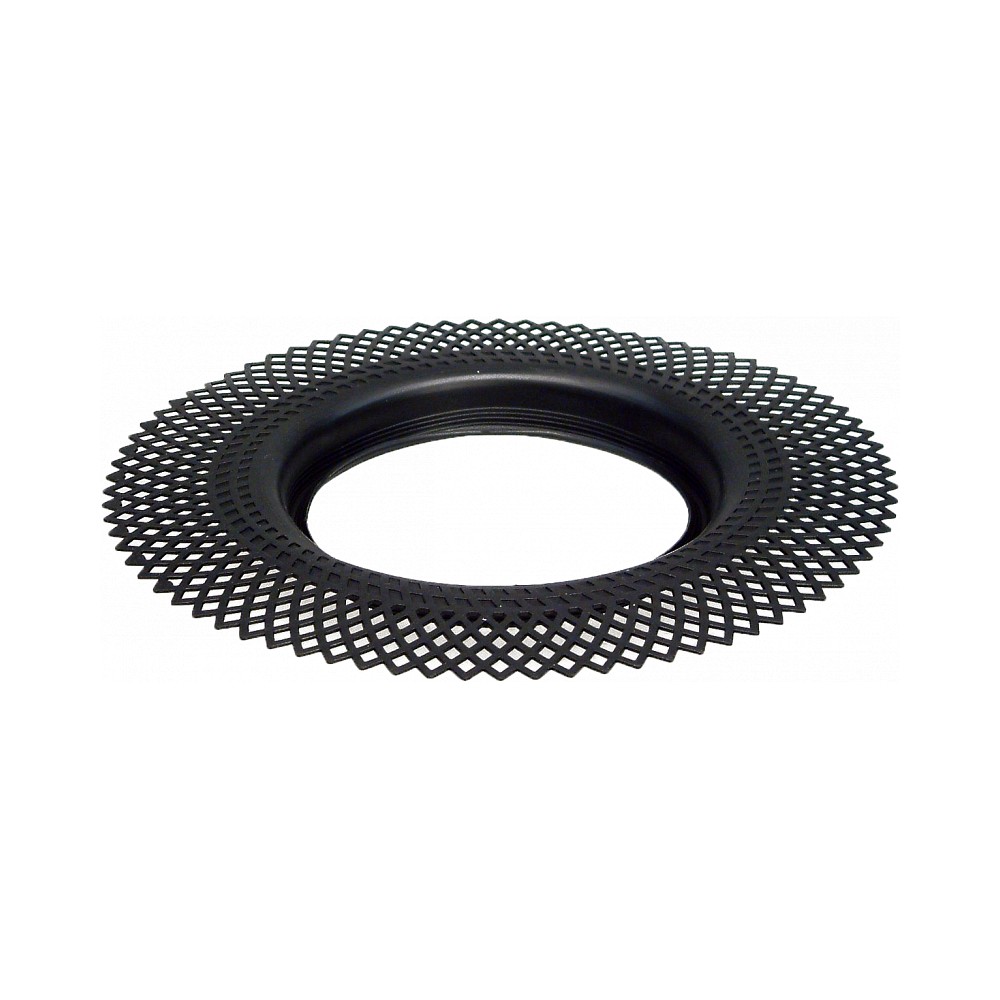

- Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

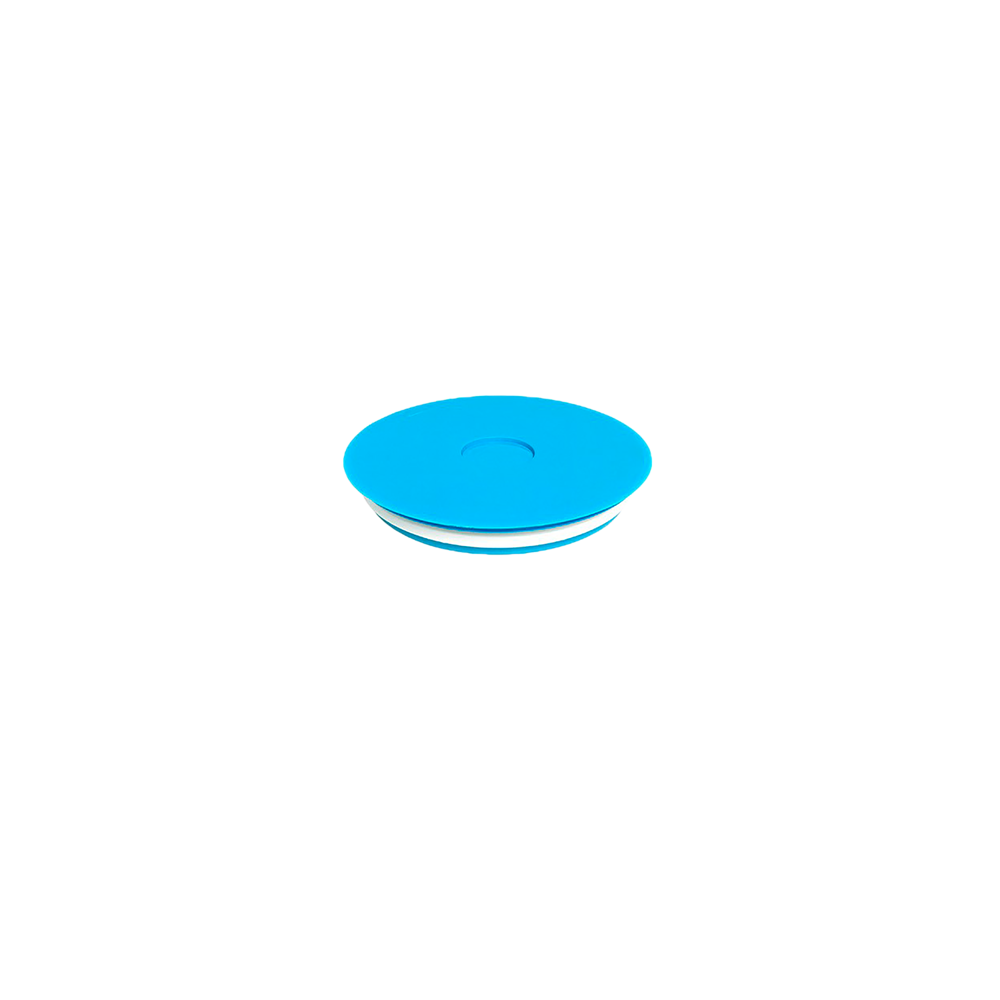

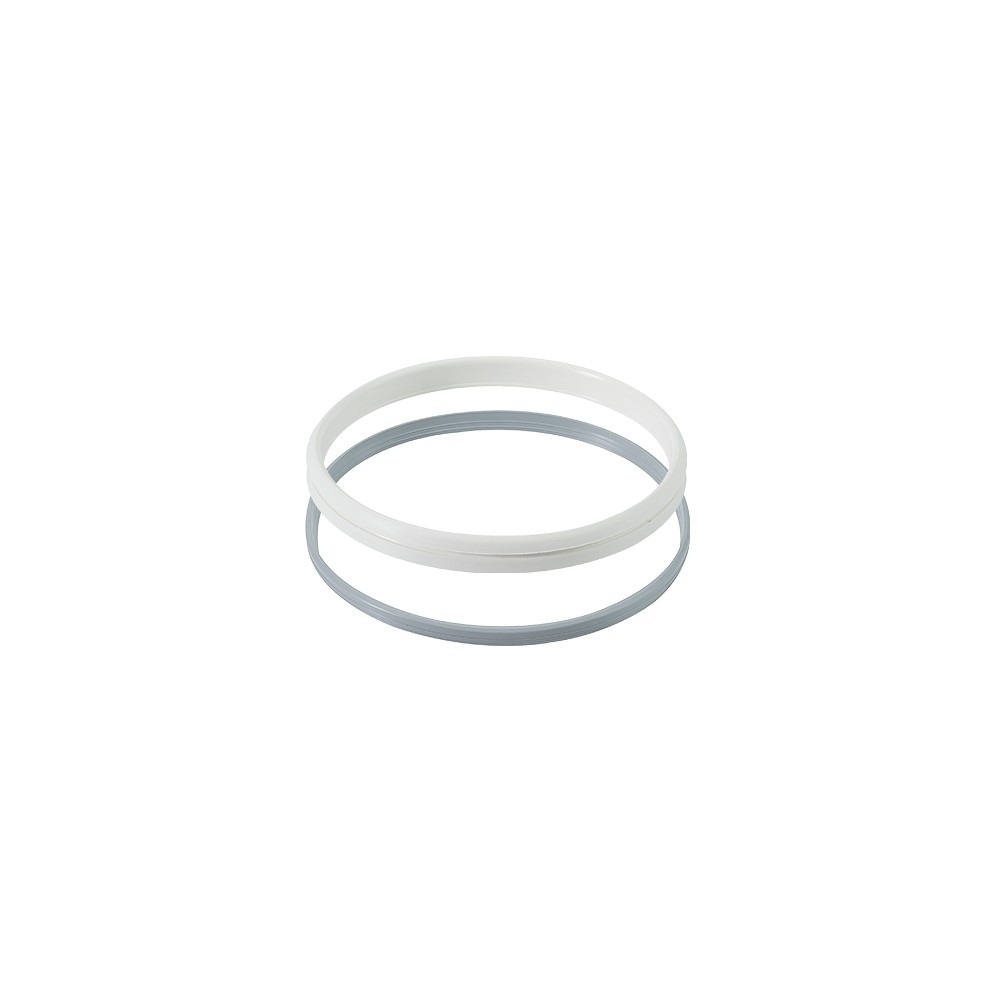

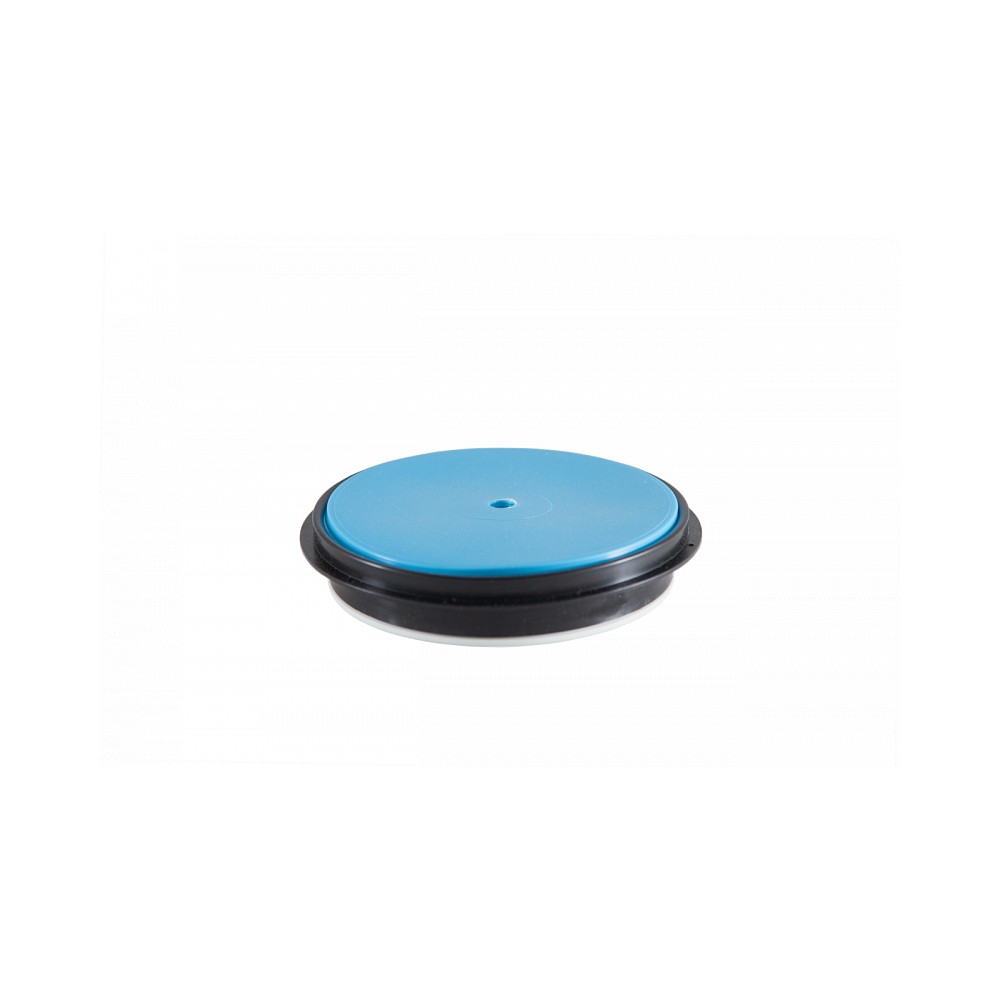

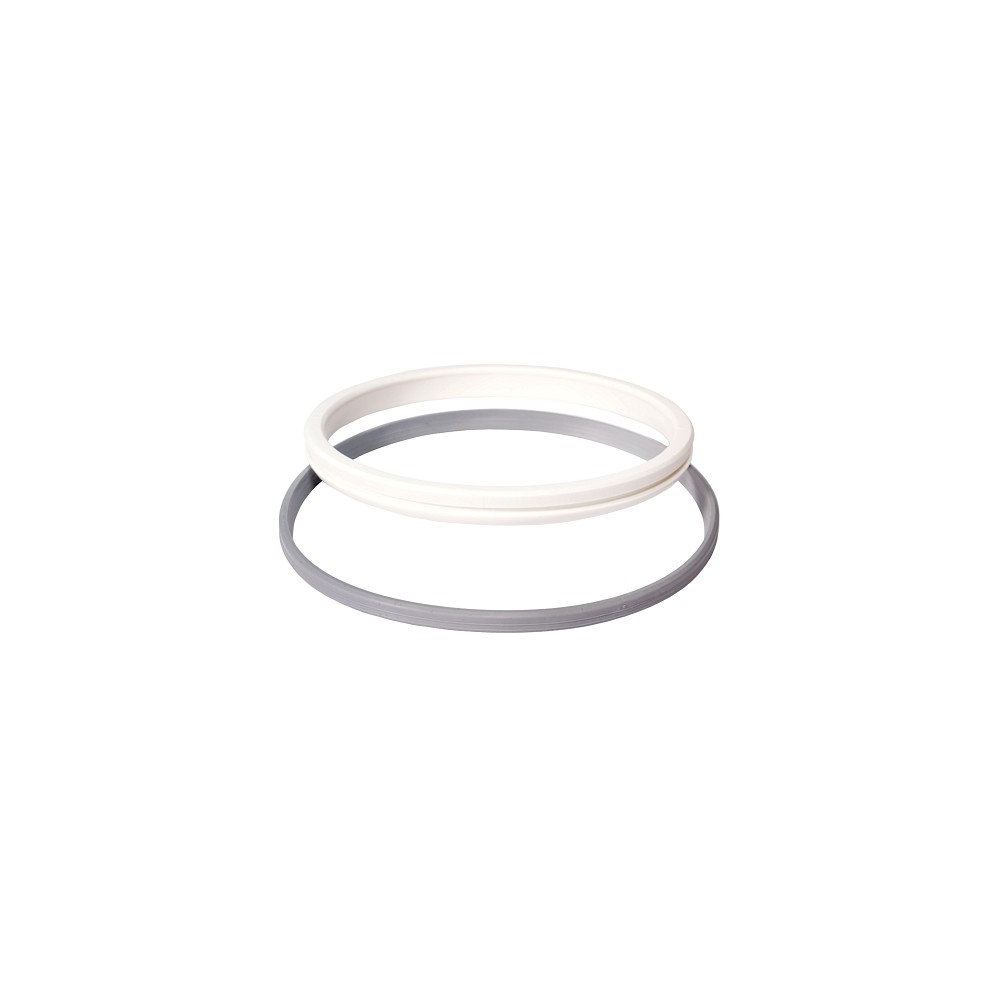

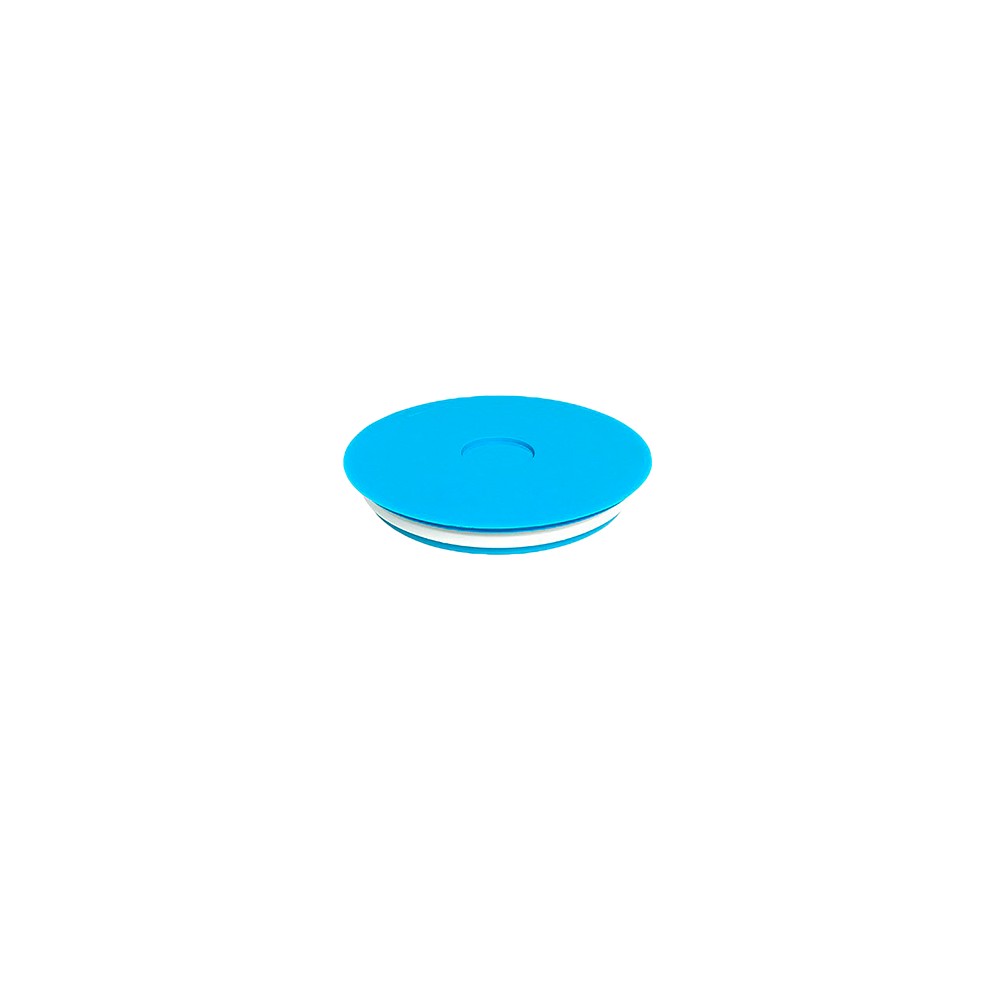

The package includes a drain, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring.

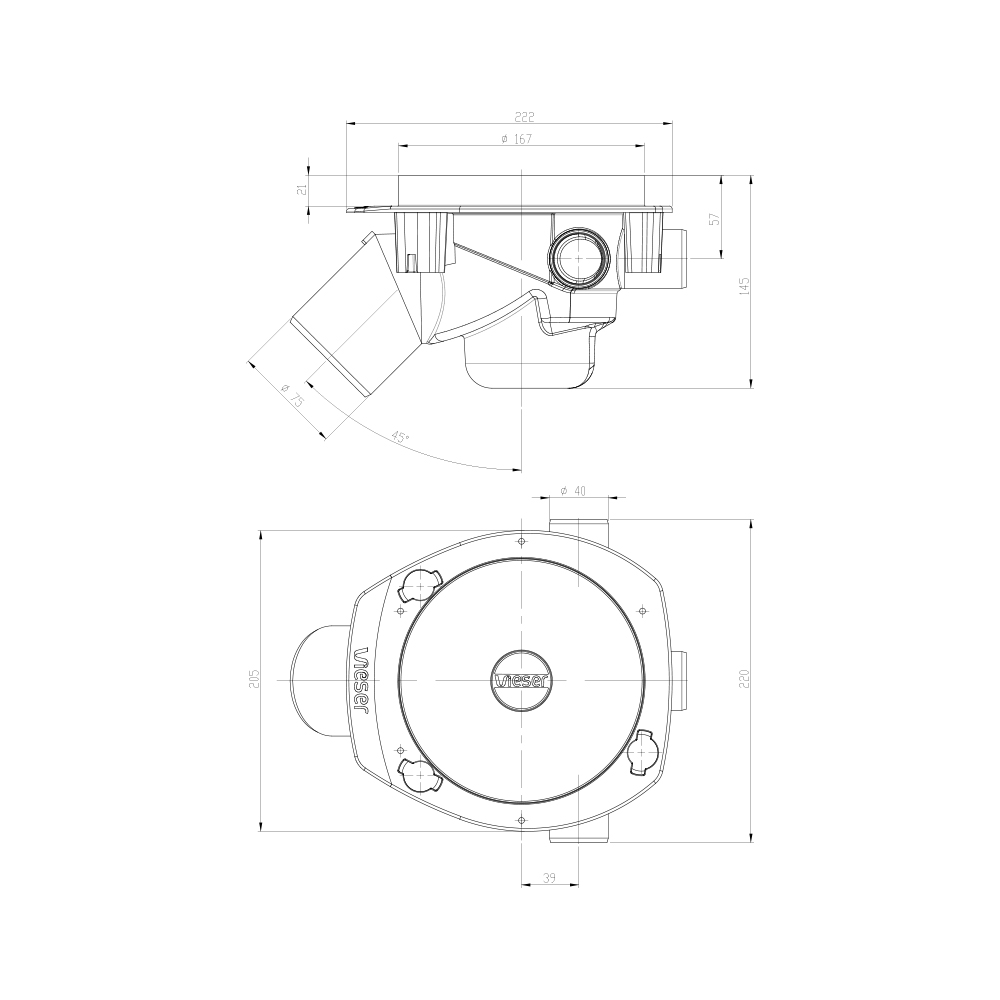

Please see the structural drawings for different floor structures in our material bank.
