| Vieser no | 52612 |
| EAN | 6418685526120 |
| LVI | 3315958 |
| Material | Polypropylene (PP) |
| Packaging (box/pallet) | 17/136 |
| Discharge | 1.2 l/s |

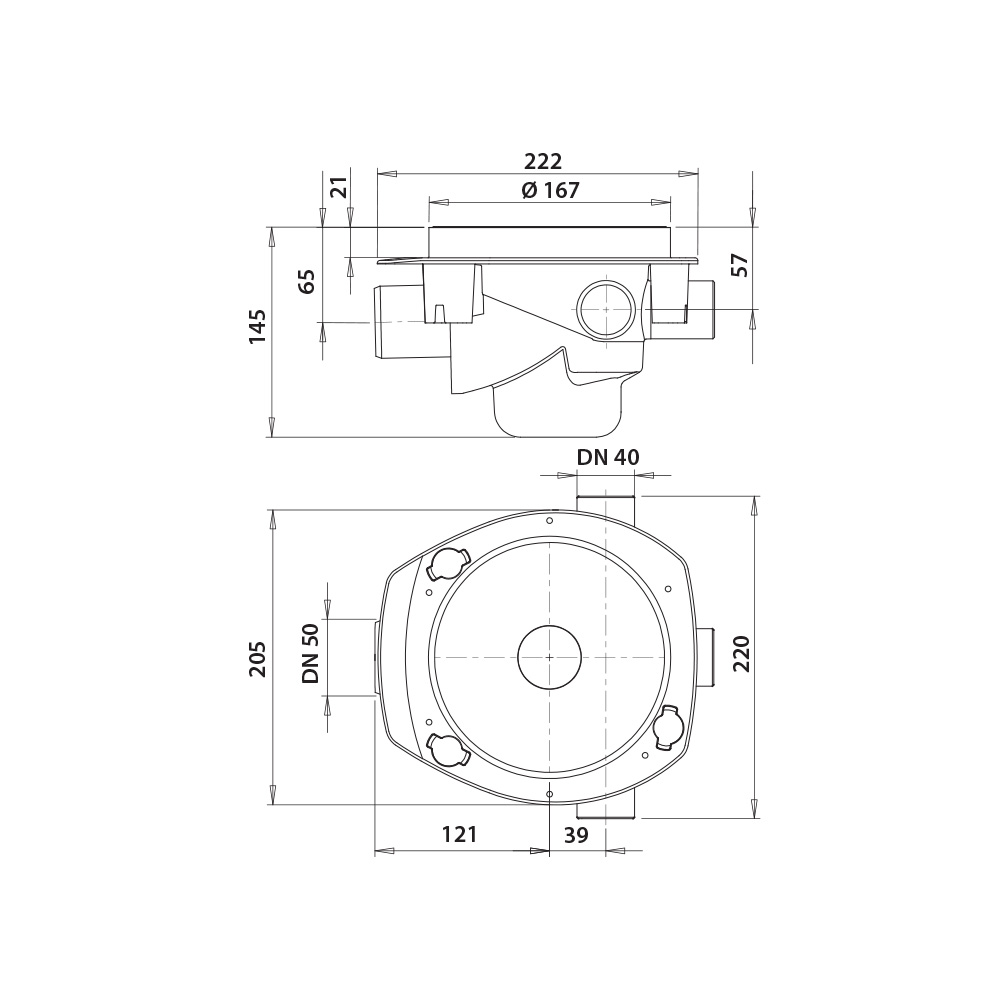

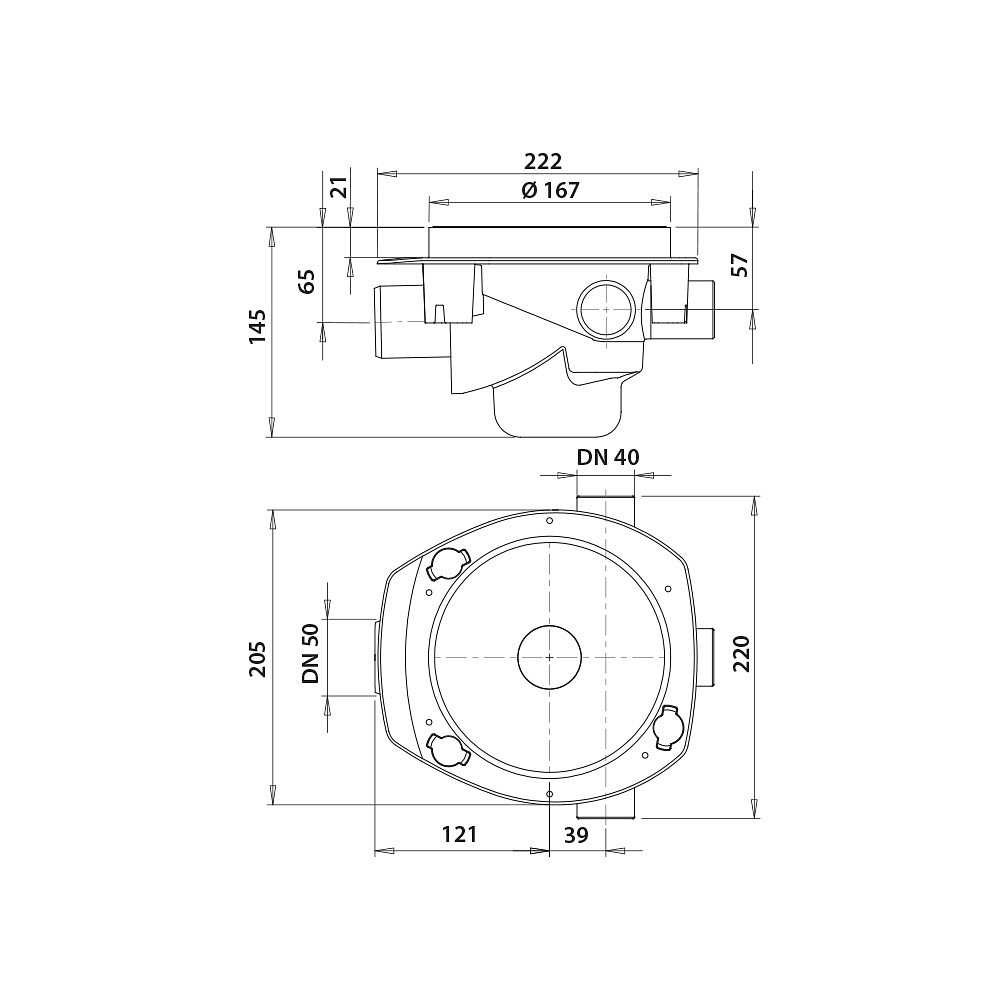

| Product dimensions | 220 x 222 x 145mm |
| Product weight | 0.5 kg |
| Floor material | Tile, Plastic mat, Mass |

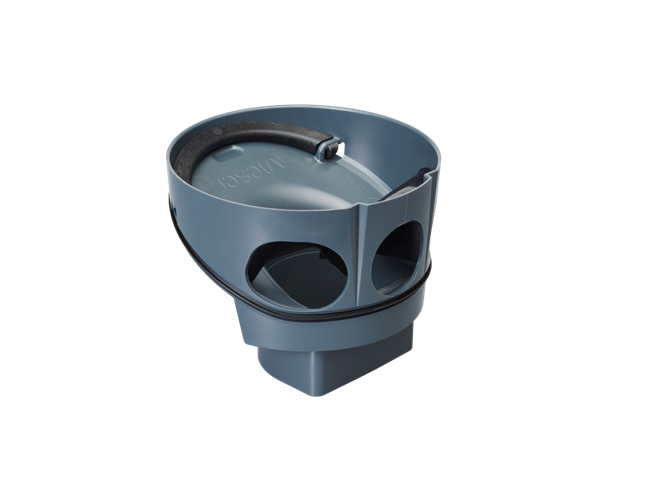

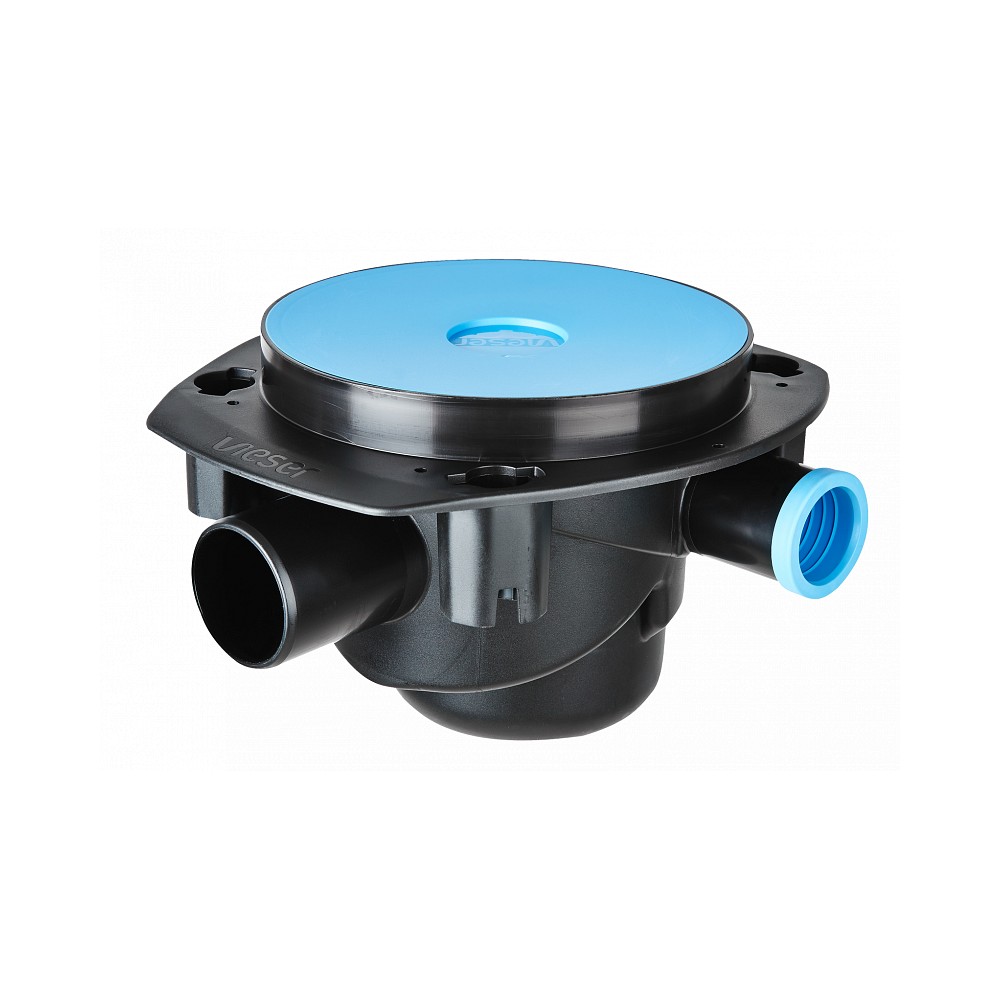

Vieser One floor drain DN50 3×32/40
The Vieser One horizontal floor drain DN50 has a 50 mm outlet and three 32/40 mm side inlets that can be opened. Compatible with wood and concrete floors.
- Type approved
- Removable water trap

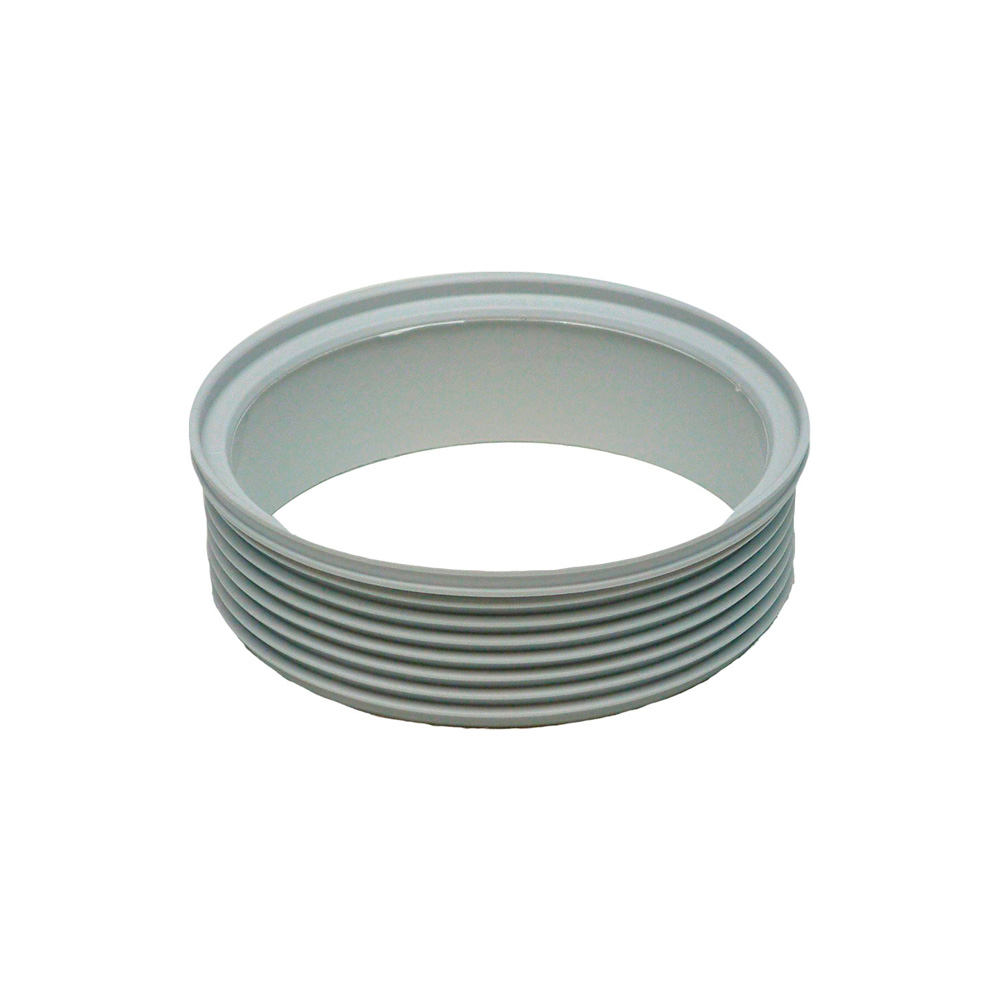

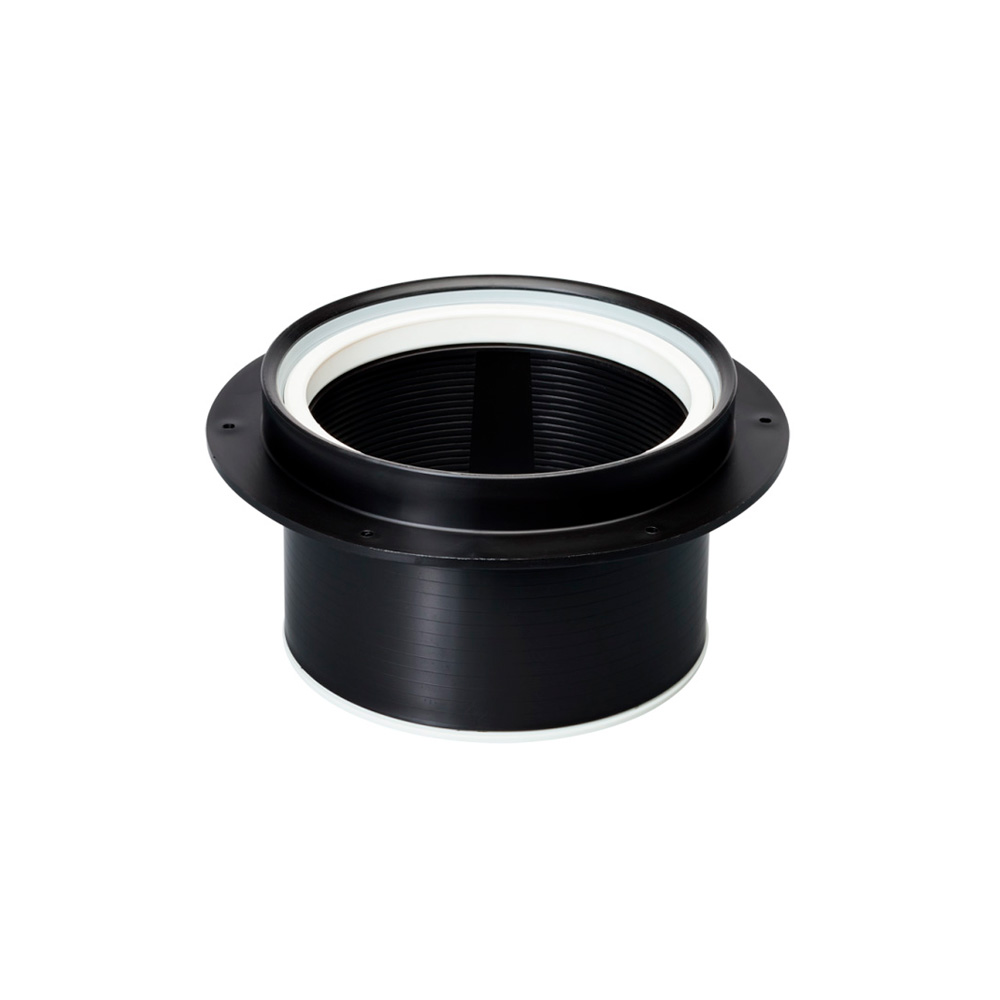

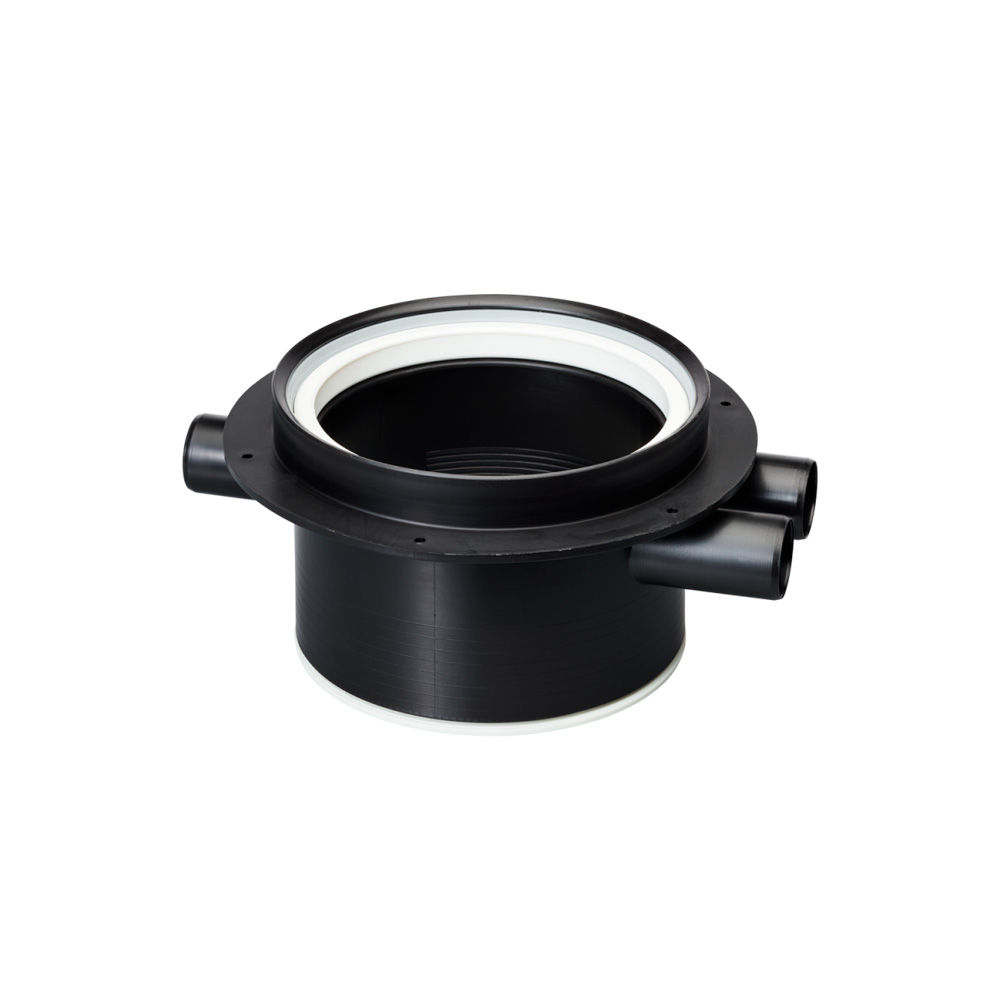

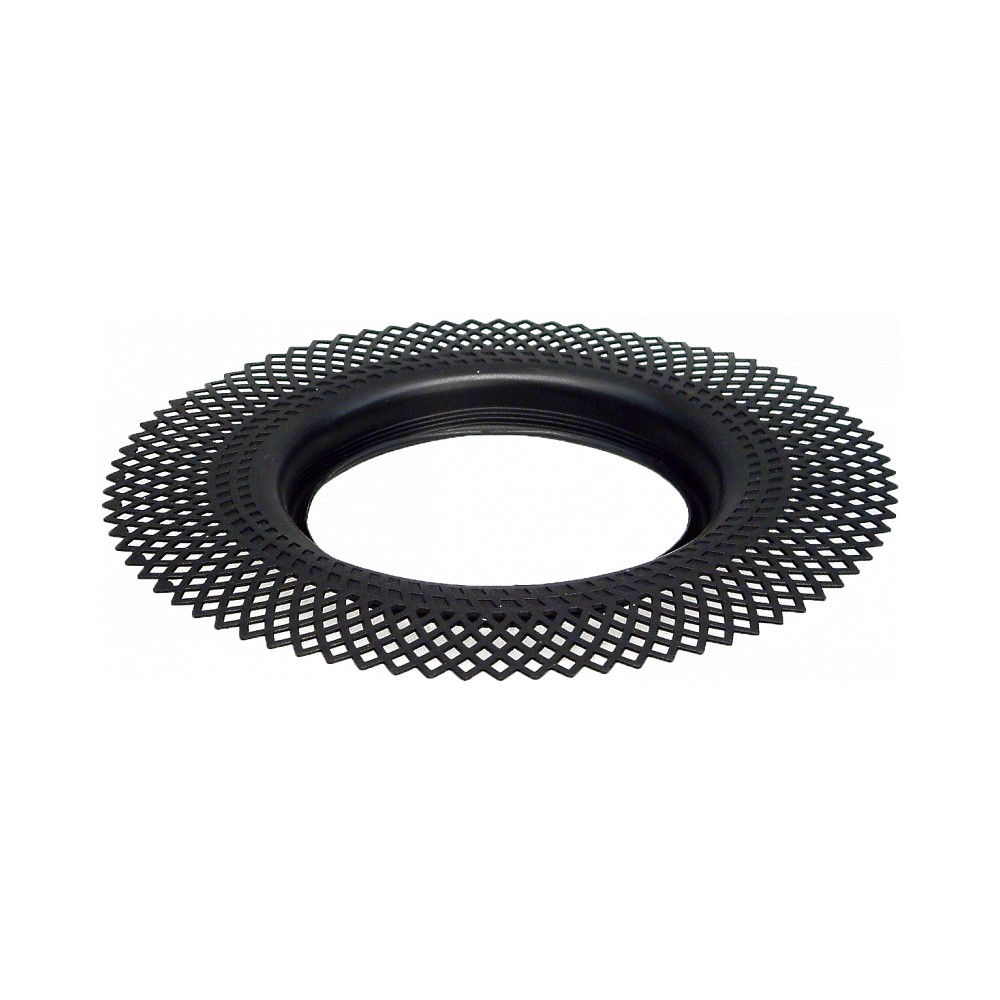

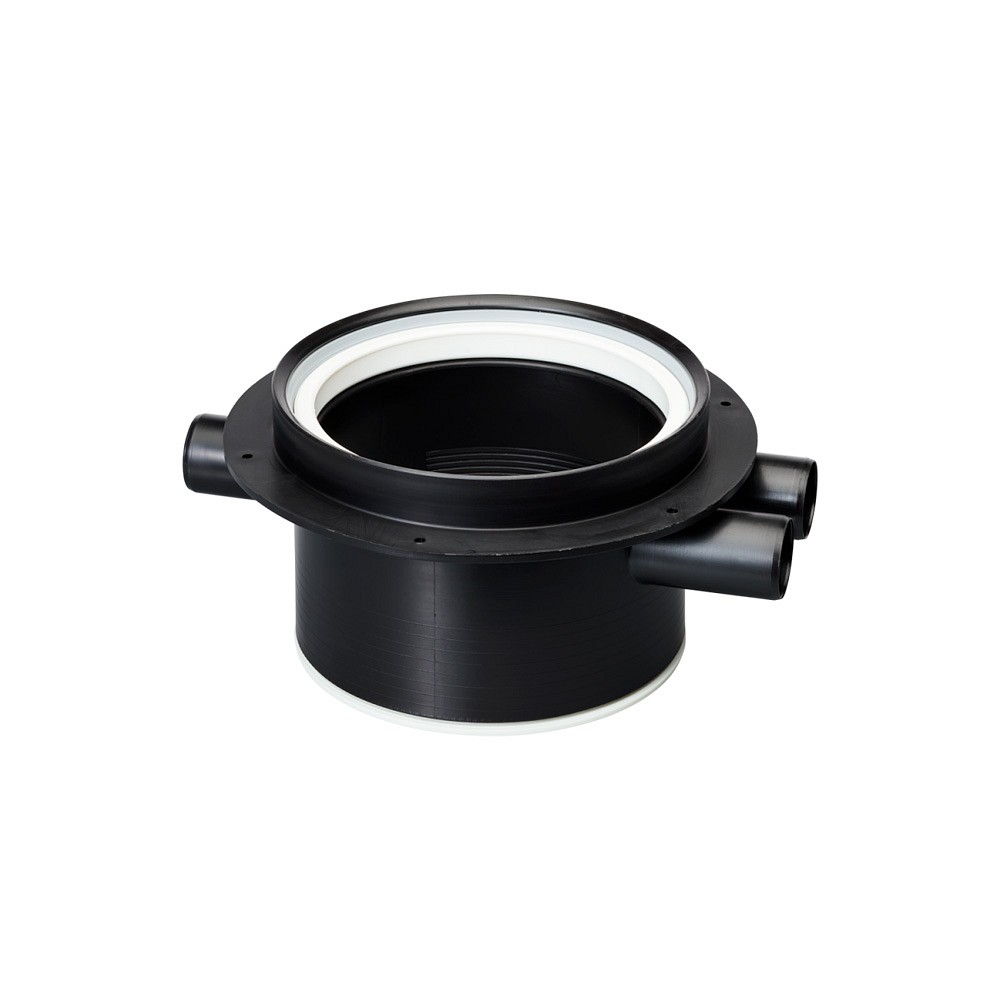

- Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

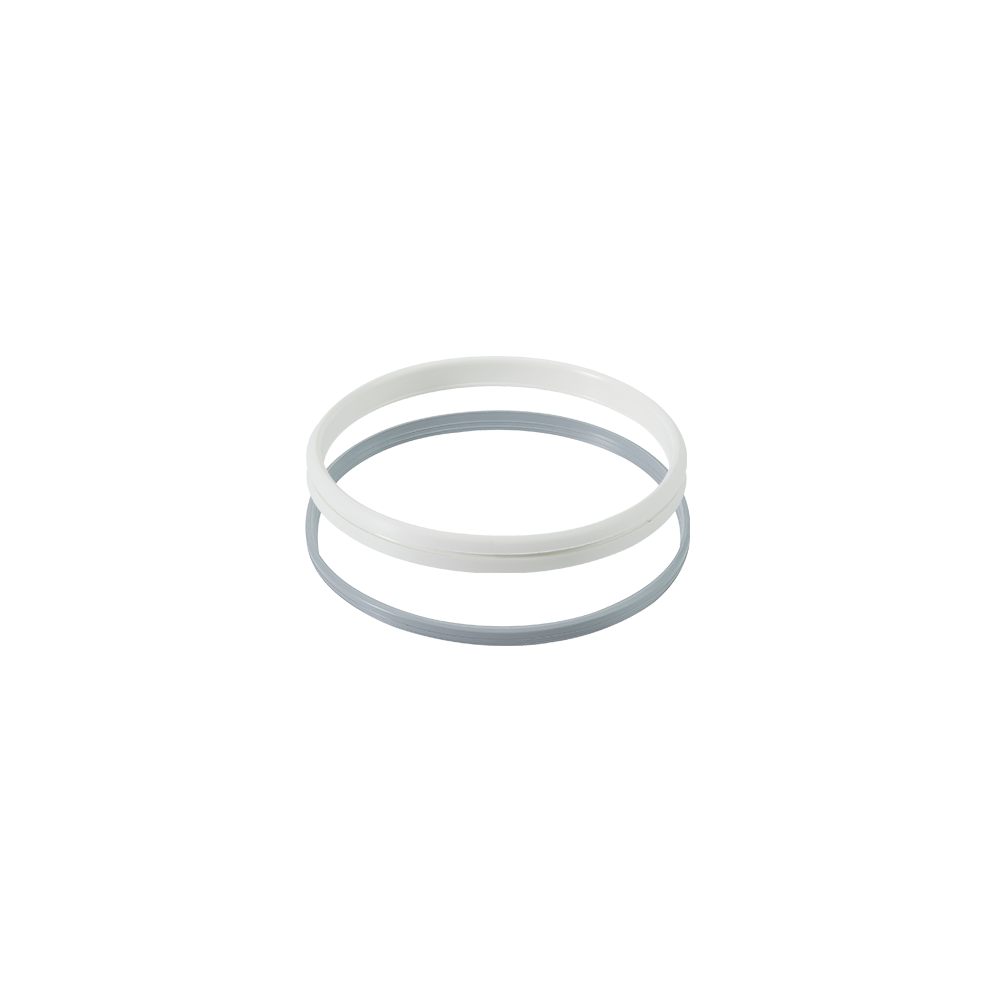

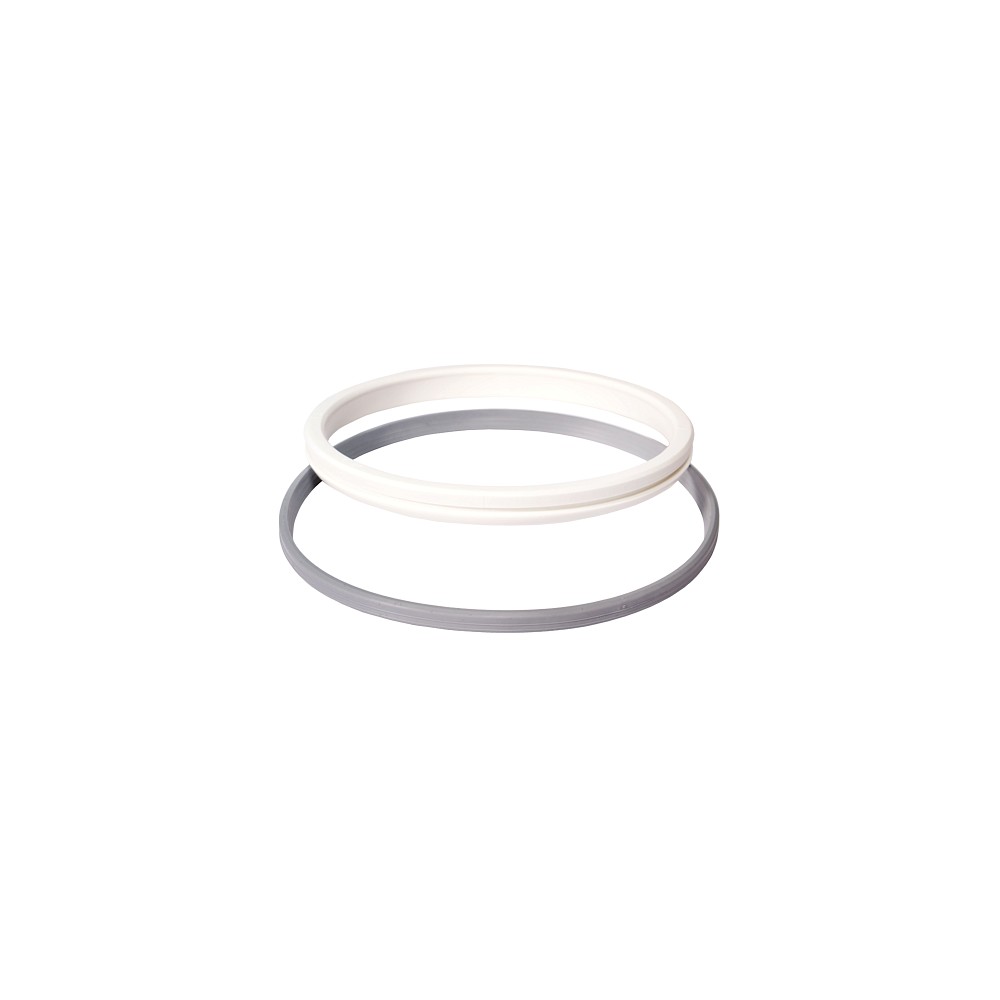

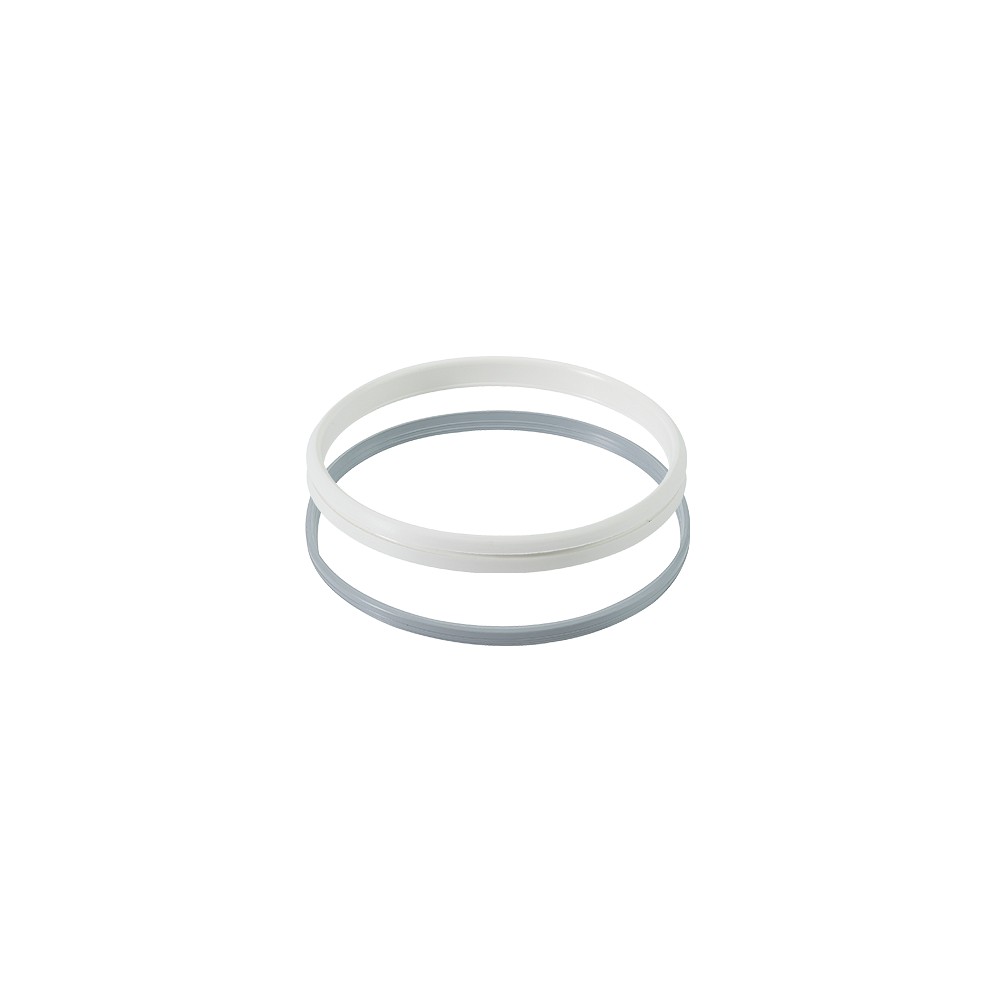

The package includes a drain, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring.
Please see the structural drawings for different floor structures in our material bank.
Read more

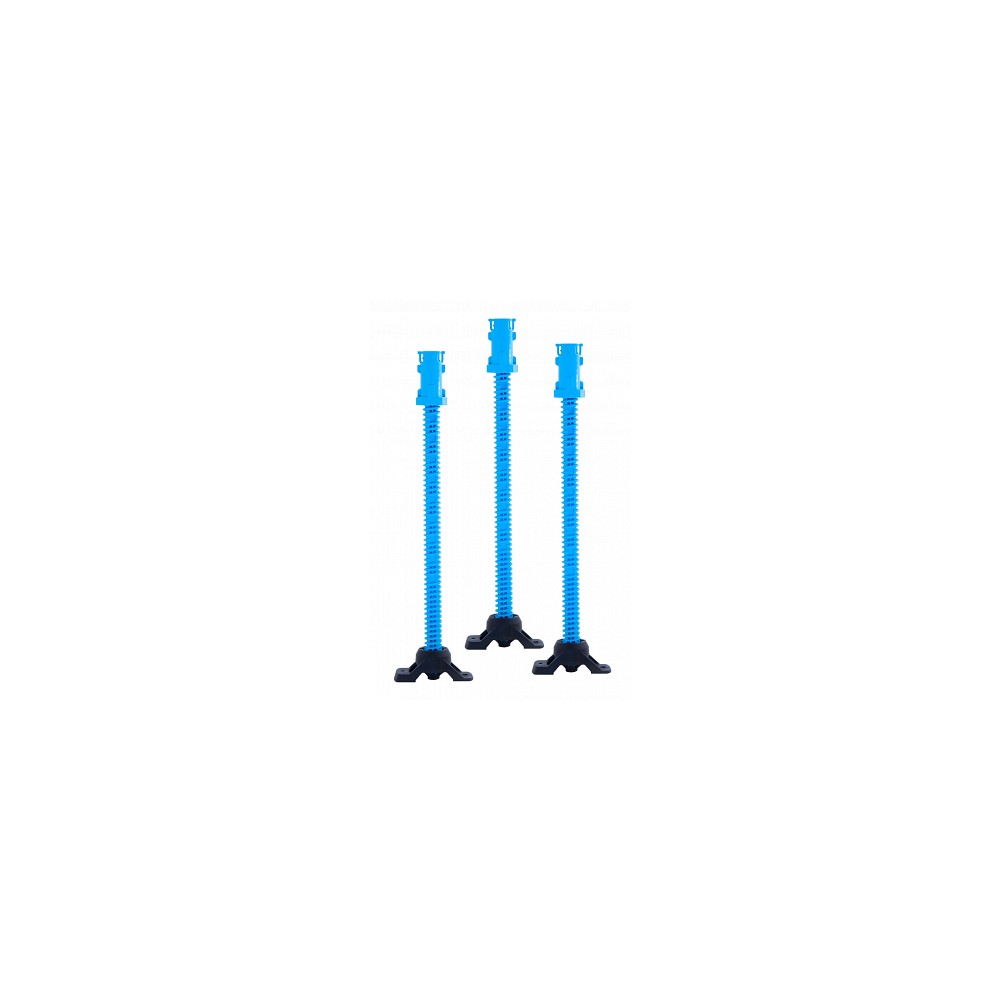

As a spare part, a support leg spare part package is available (HVAC no 3315948). With the support legs, the floor drain can be raised up to 345 mm.
