Vieser Grid rating with adjustable steel frame 197x197

Vieser Grid rating with adjustable steel frame 197x197

,

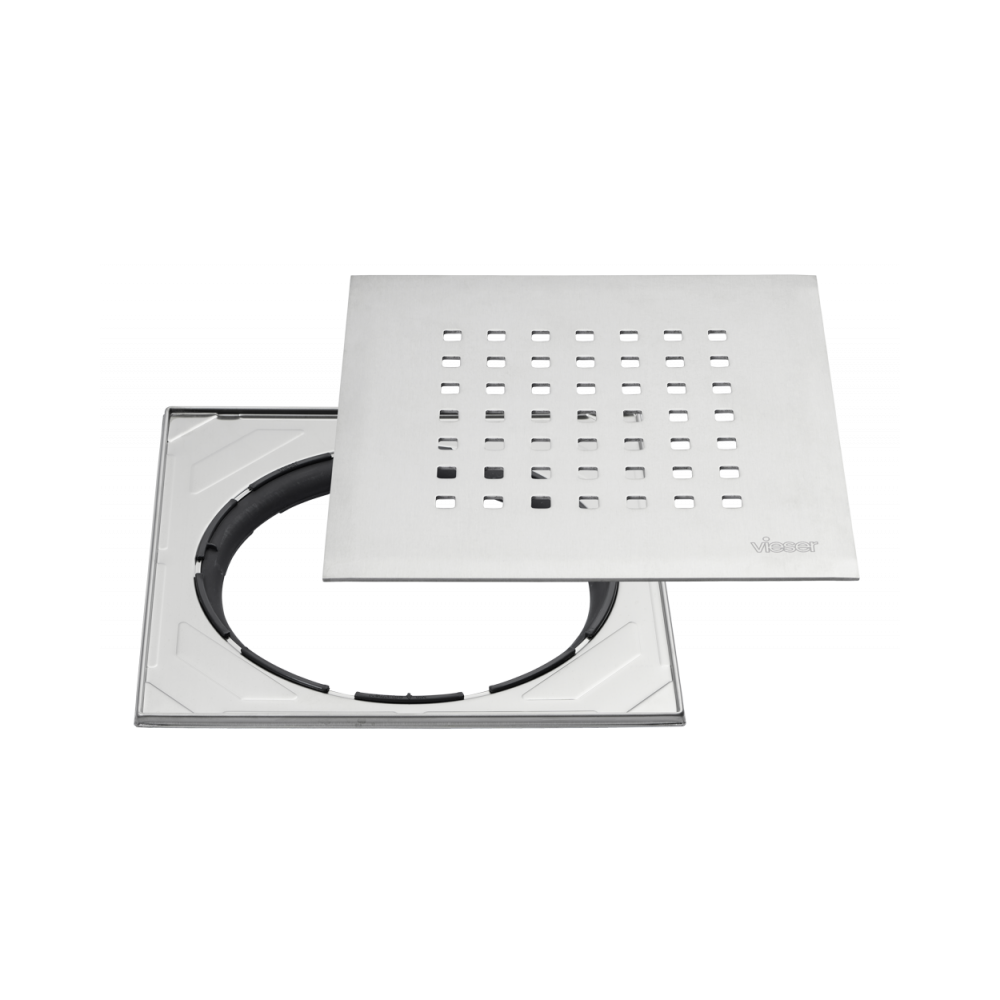

Vieser Grid is a stainless steel floor drain grating with an adjustable frame. The frame is designed to facilitate the tiling work. By rotating the frame and its adjustment ring, the frame can be aligned with the tiling.
  • The total adjustment range is 15 mm – 30 mm.
  • Compatible with all Vieser floor drains
The package contains a grating and adjustable stainless steel frame.
Vieser no6005483
EAN6430066742974
HVAC3317317
MaterialStainless steel (AISI 304)
Durability300 kg
Packaging (box/pallet)20/480
Product dimensions197 x 197 x 5.7mm
Product weight0.6 kg
Vieser Grid rating with adjustable steel frame 197x197 - Vieser Suomi

Vieser Grid rating with adjustable steel frame 197×197

SQUARE GRATINGS

Vieser Grid is a stainless steel floor drain grating with an adjustable frame. The frame is designed to facilitate the tiling work. By rotating the frame and its adjustment ring, the frame can be aligned with the tiling.

  • The total adjustment range is 15 mm – 30 mm.
  • Compatible with all Vieser floor drains

The package contains a grating and adjustable stainless steel frame.

Avainlippu
Vieser no6005483
EAN6430066742974
LVI3317317
MaterialStainless steel (AISI 304)
Durability300 kg
Packaging (box/pallet)20/480
Product dimensions197 x 197 x 5.7mm
Product weight0.6 kg
