| Vieser no | 52641 |
| EAN | 6418685526410 |
| LVI | 3315942 |
| Material | Polypropylene (PP) |
| Packaging (box/pallet) | 15/180 |
| Discharge | 0.6 l/s |

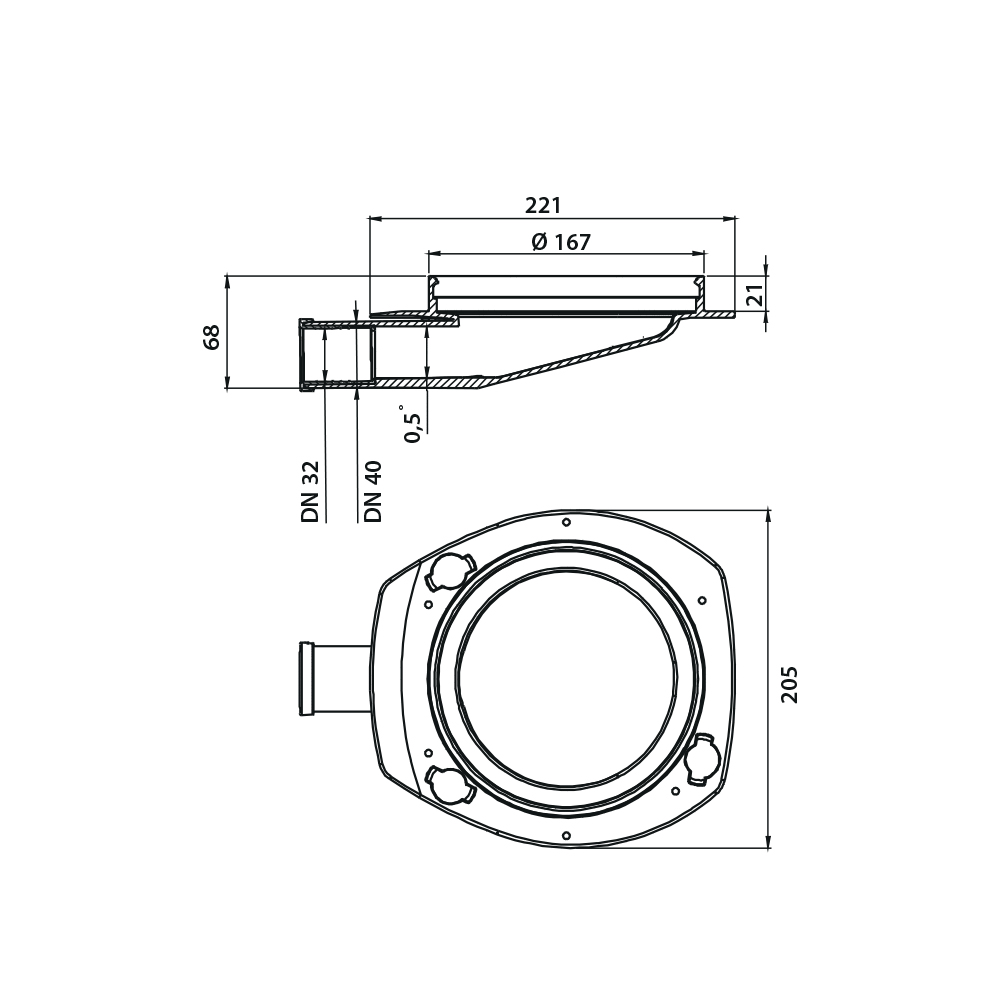

| Product dimensions | 205 x 261 x 69mm |
| Product weight | 0.3 kg |
| Floor material | Tile, Plastic mat, Mass |

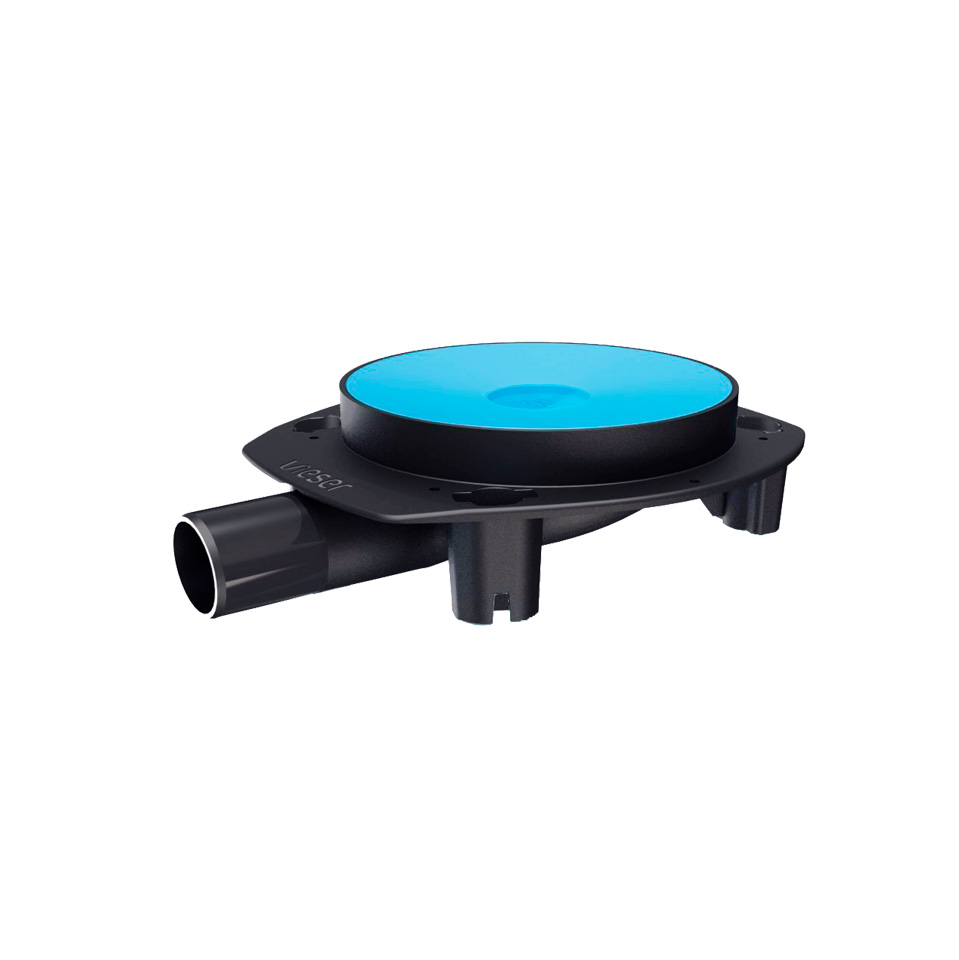

Vieser One untrapped drain DN32/40
The Vieser One untrapped floor drain DN32/40 is meant to be used e.g. in a sauna room. The drain is compatible with pipe sizes DN32 and DN40, and with wood and concrete floors.
- Type approved
- Does not include a water trap.
- Not suitable for use in a shower room.

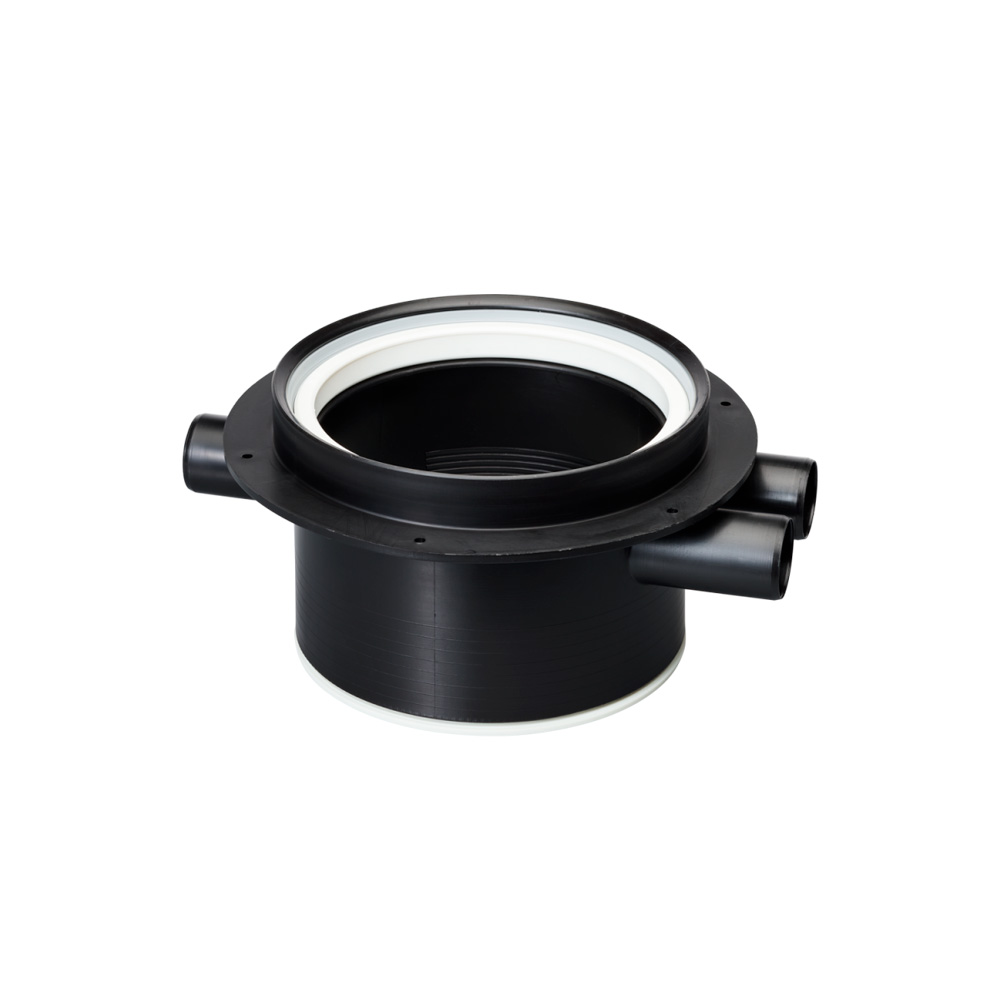

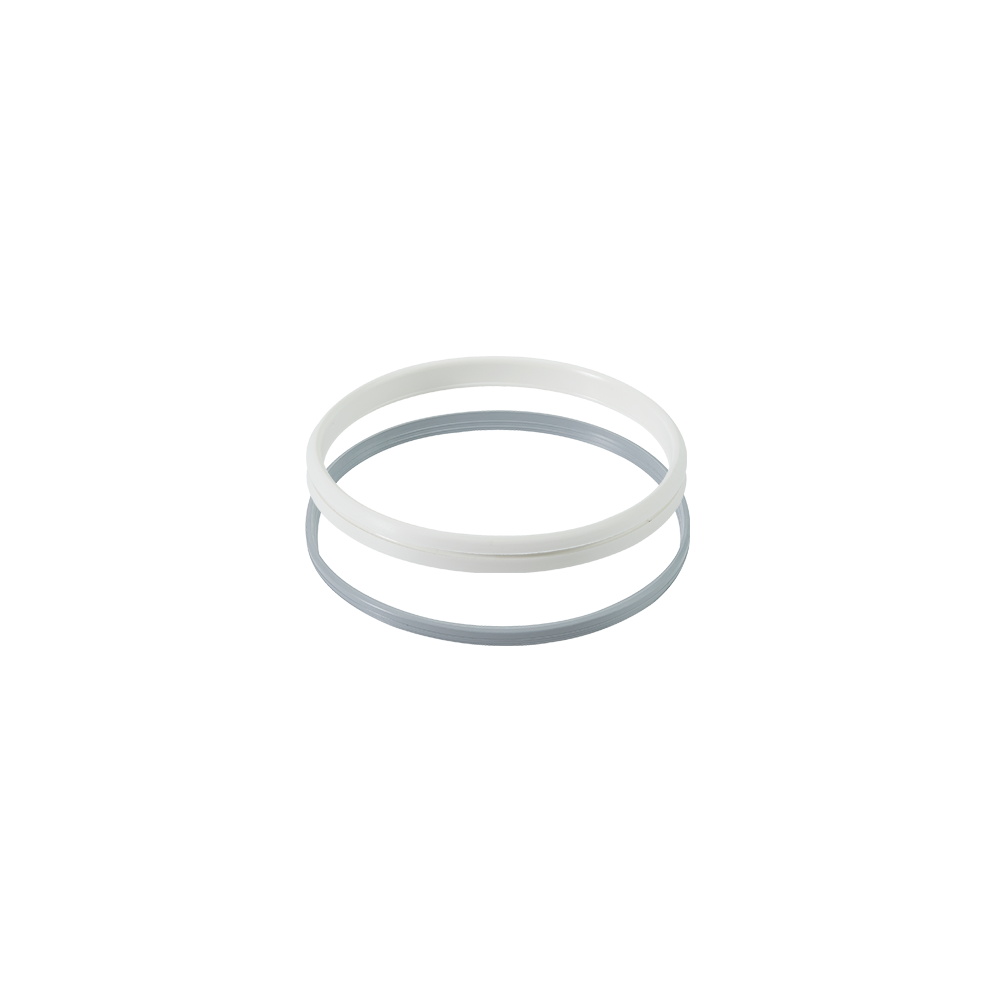

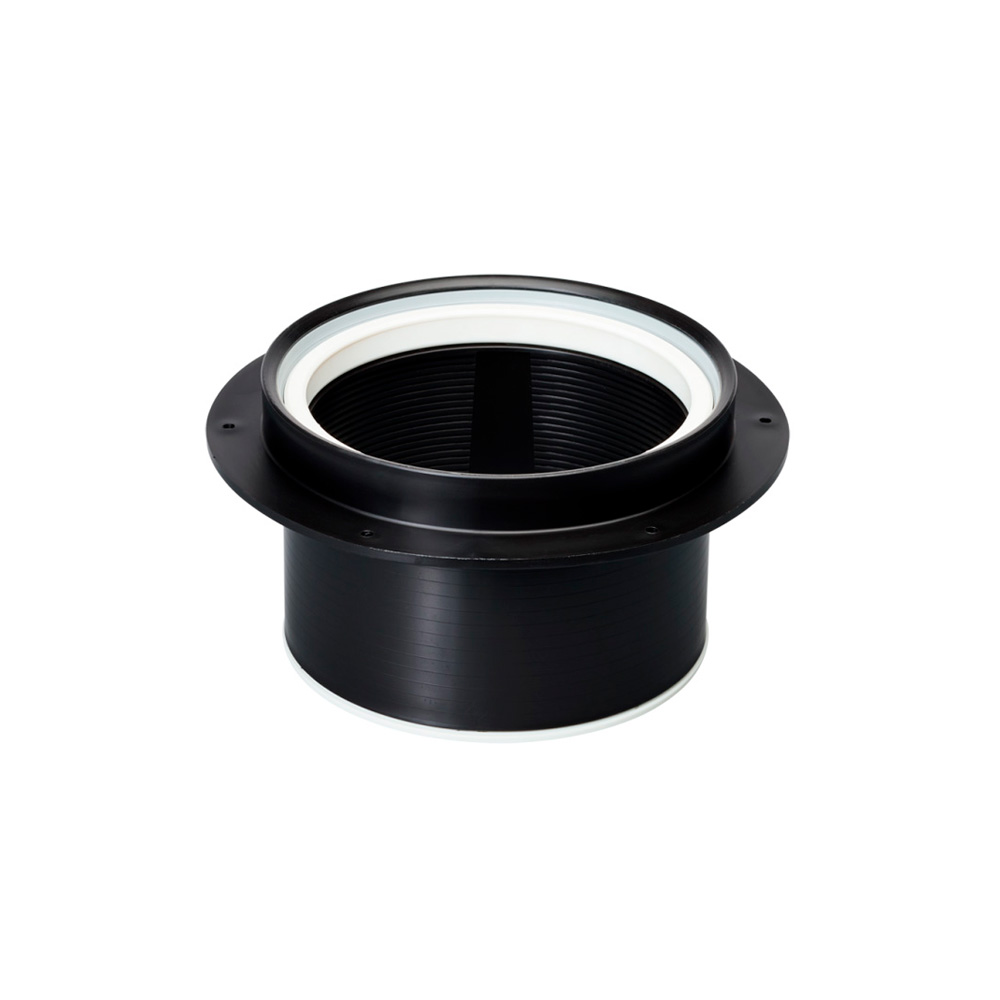

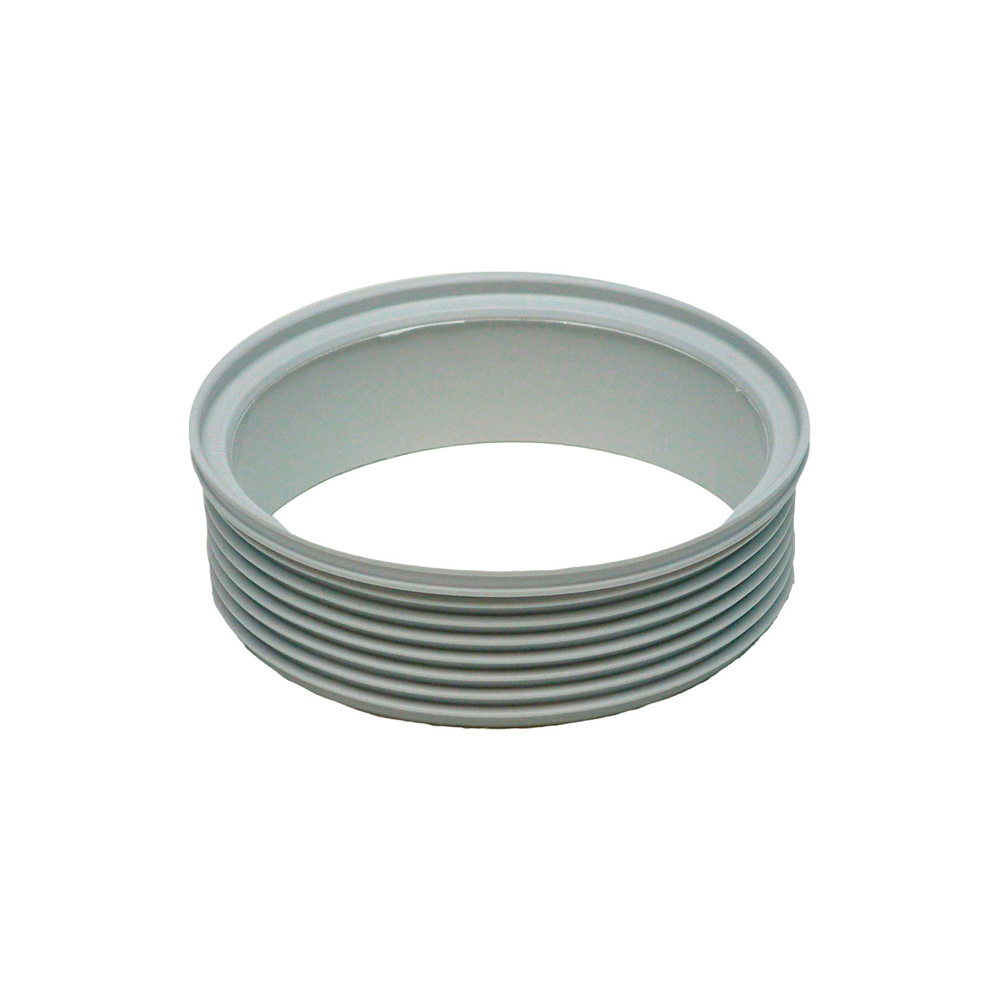

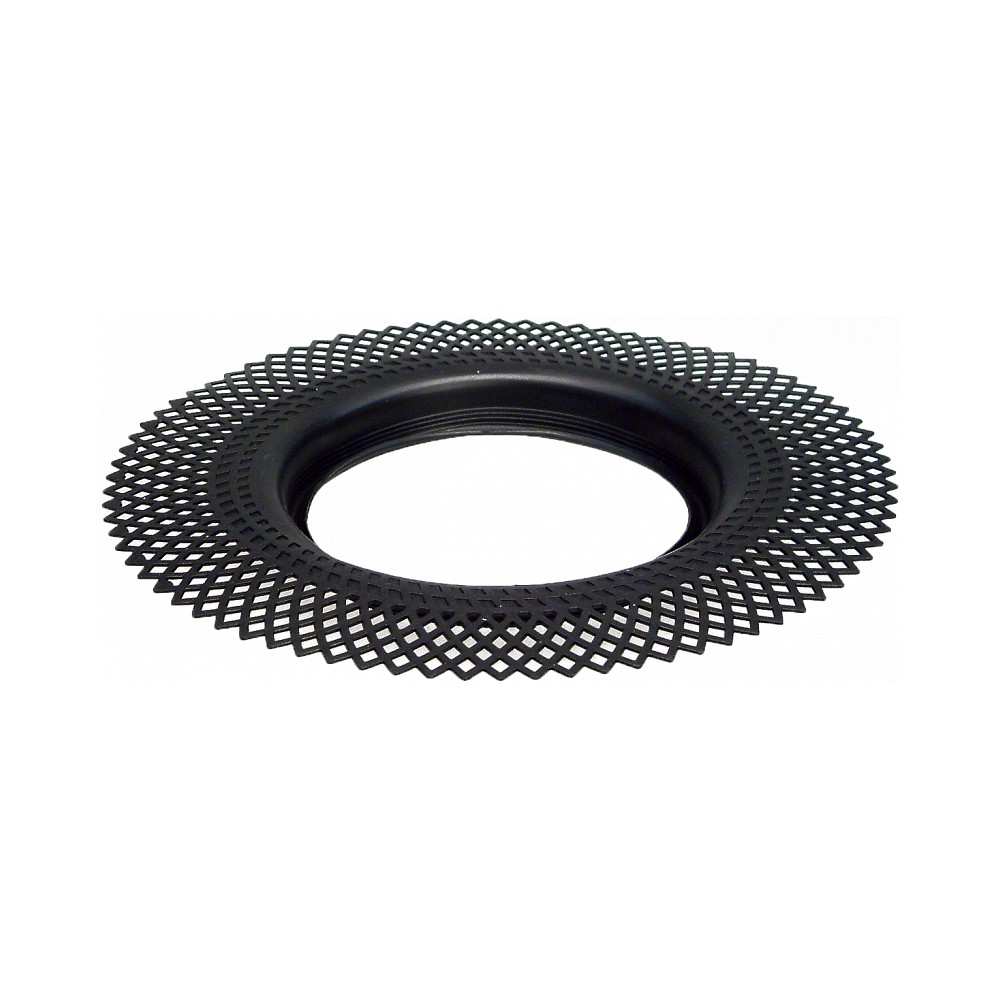

- Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

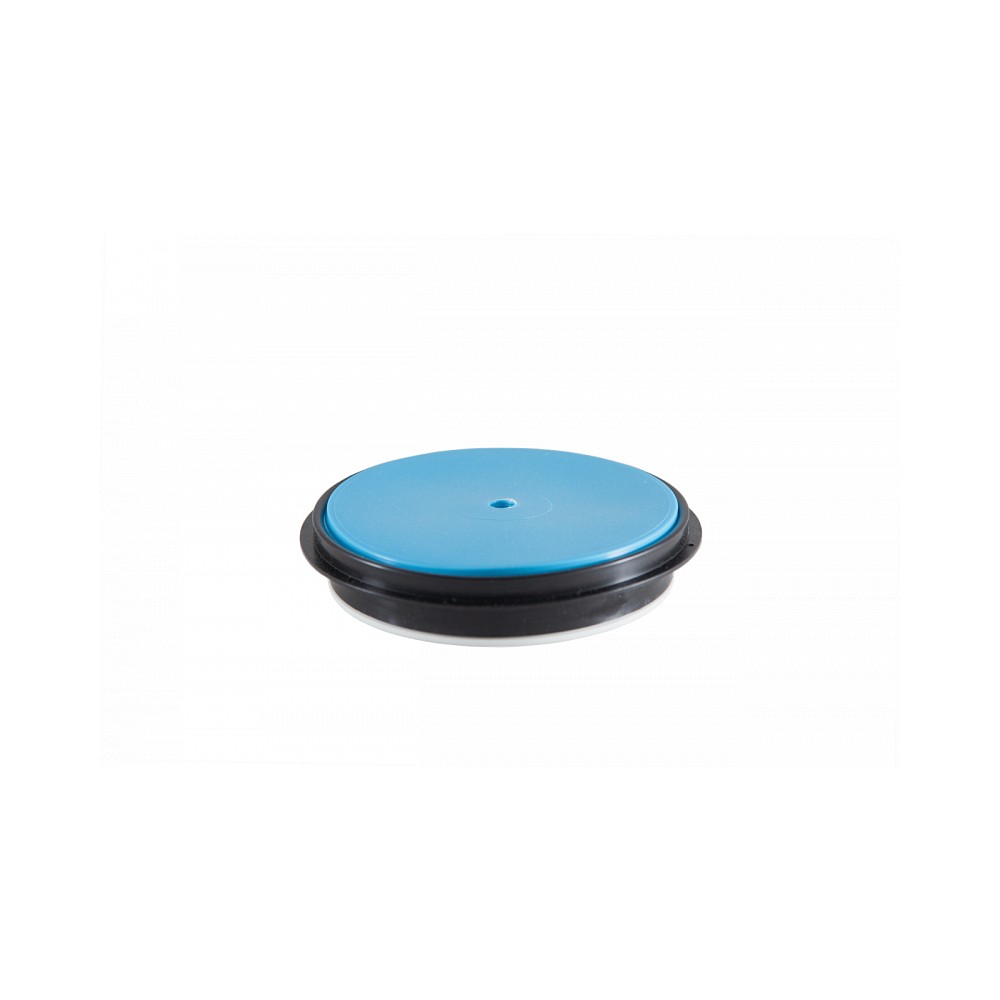

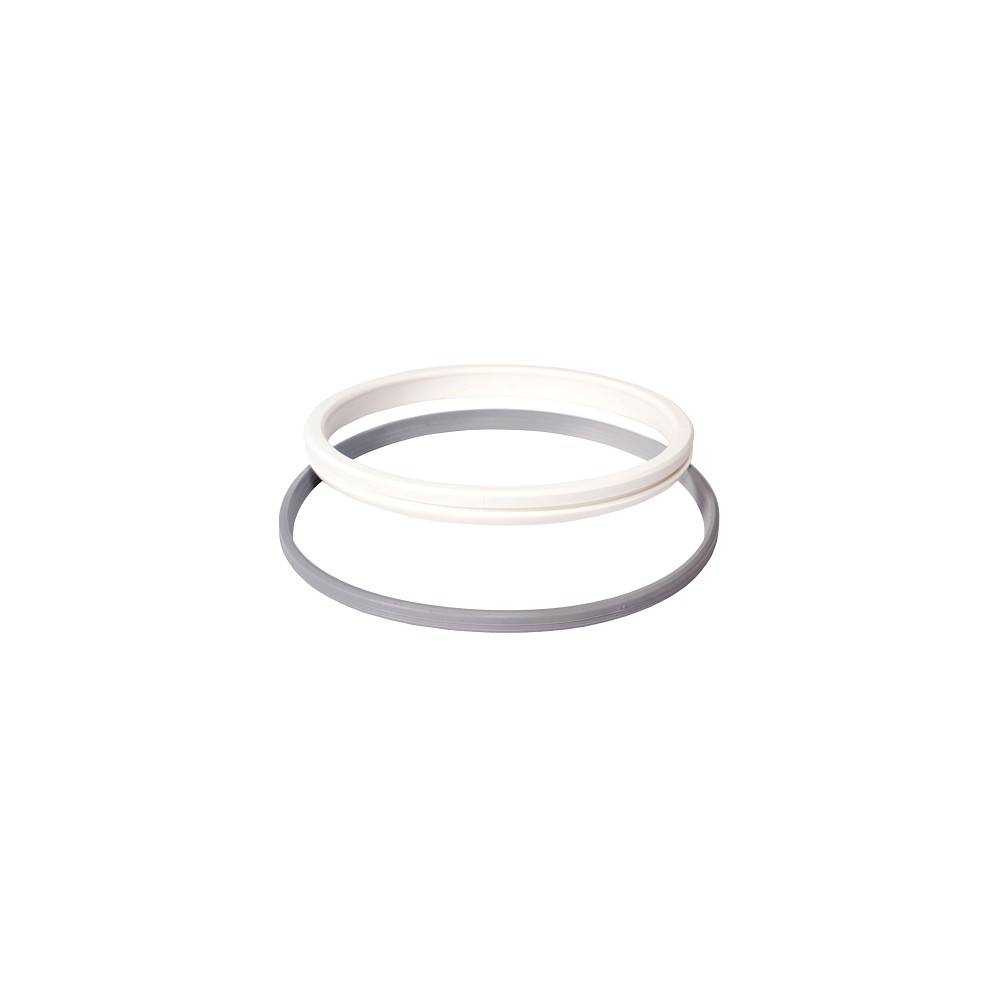

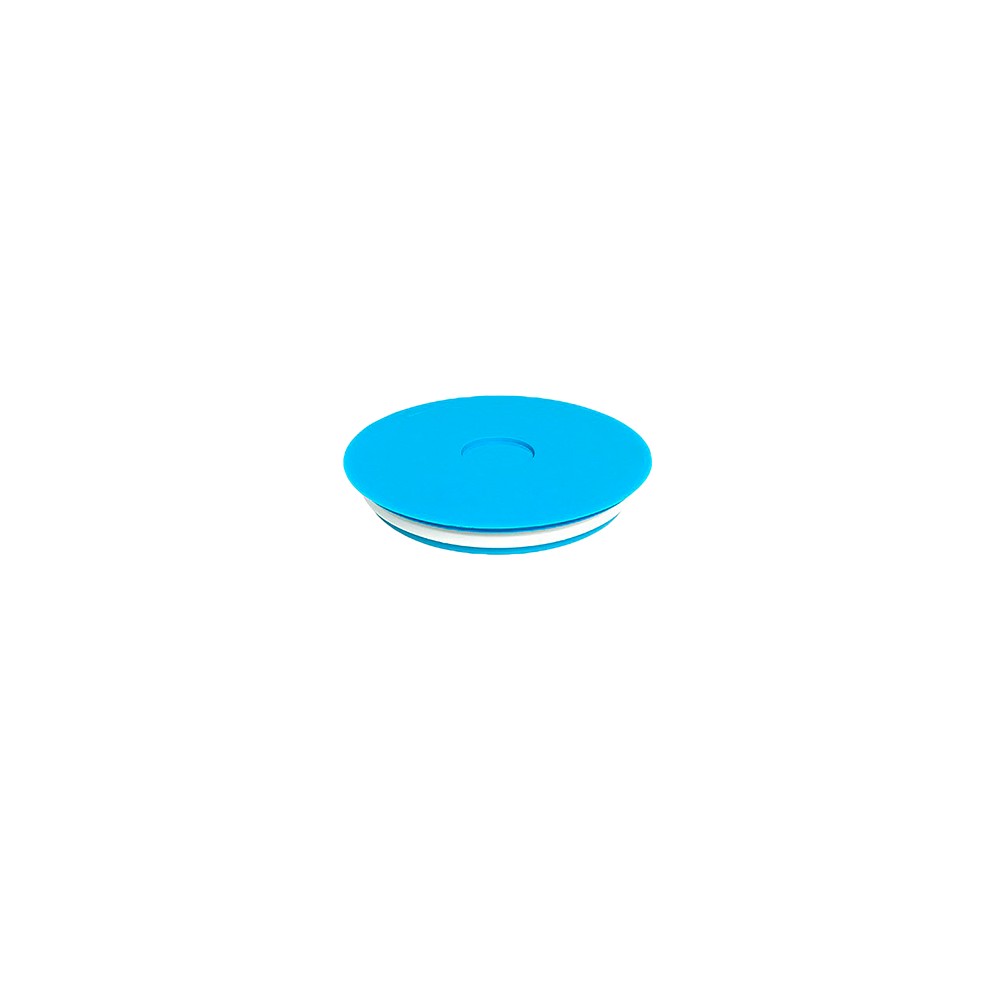

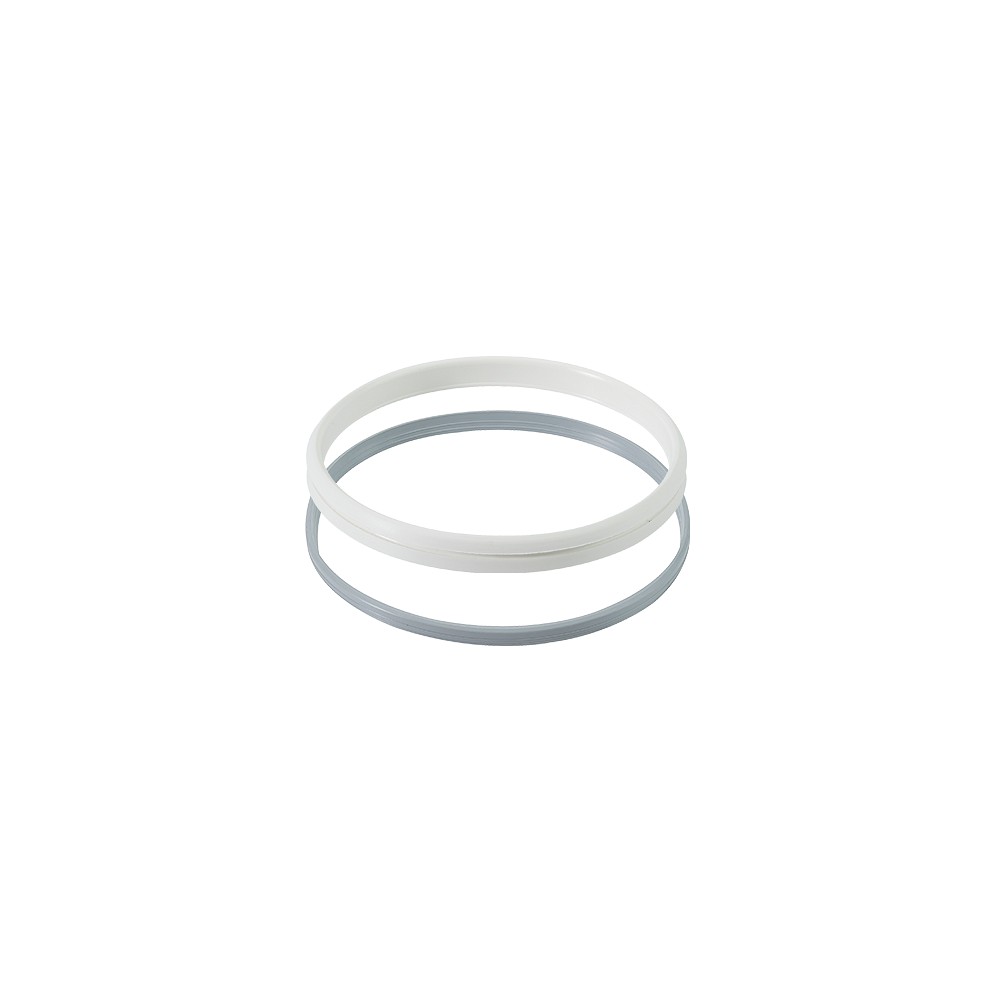

The package includes a drain, casting shield, clamping ring, seal and a tool for installing the clamping ring.

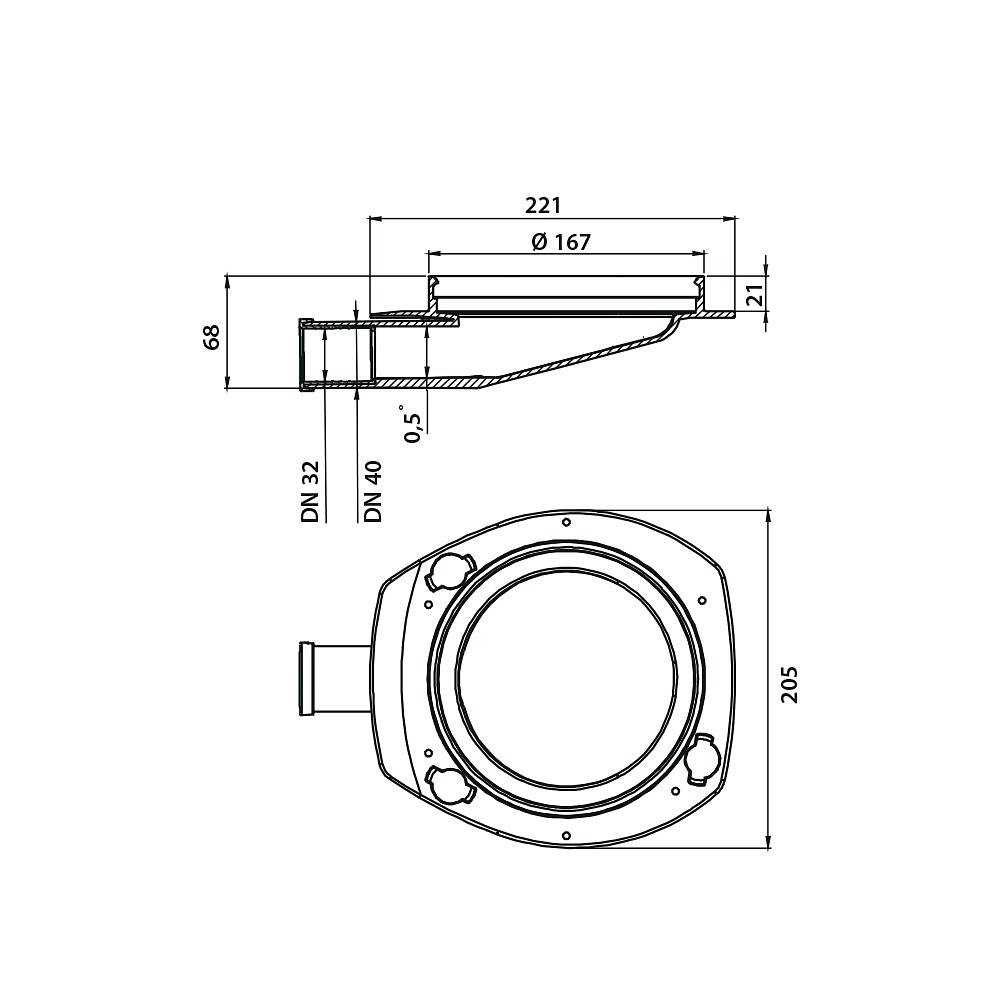

Please see the structural drawings for different floor structures in our material bank.
Read more

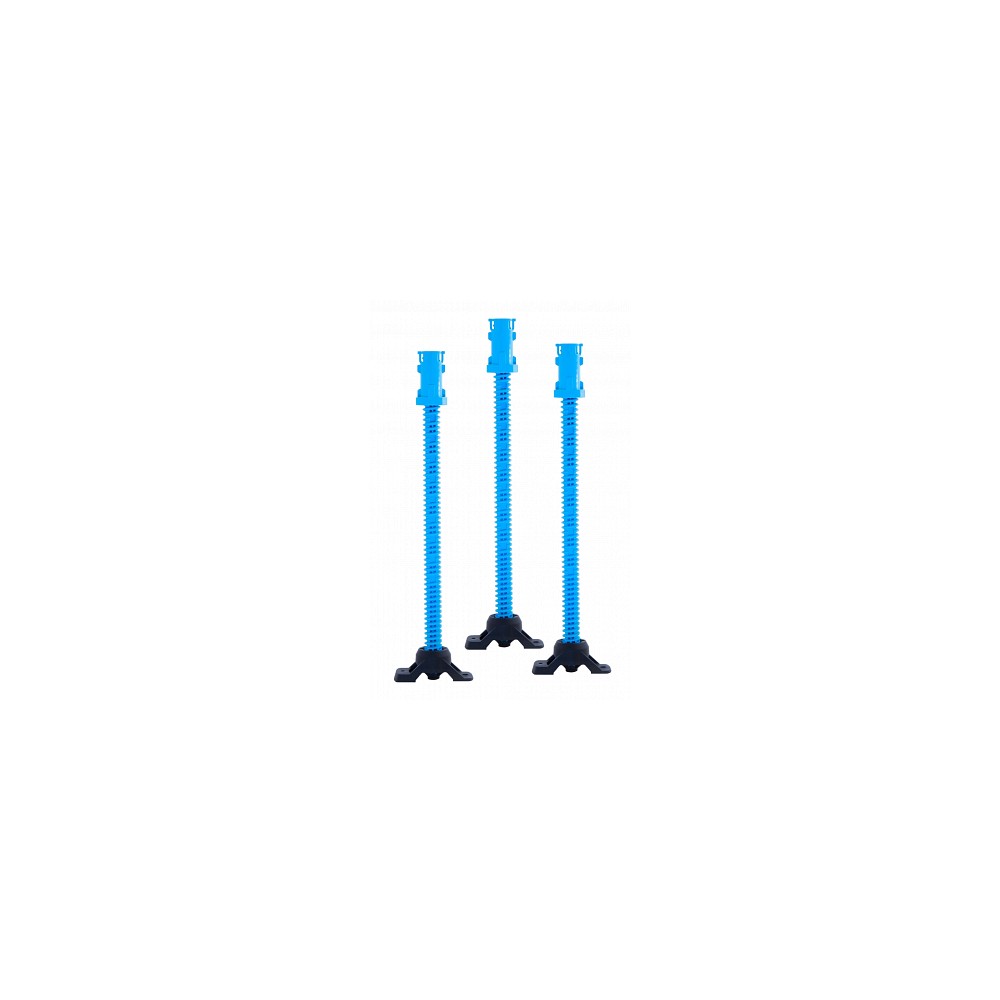

As a spare part, a support leg spare part package is available (HVAC no 3315948). With the support legs, the floor drain can be raised up to 345 mm.
