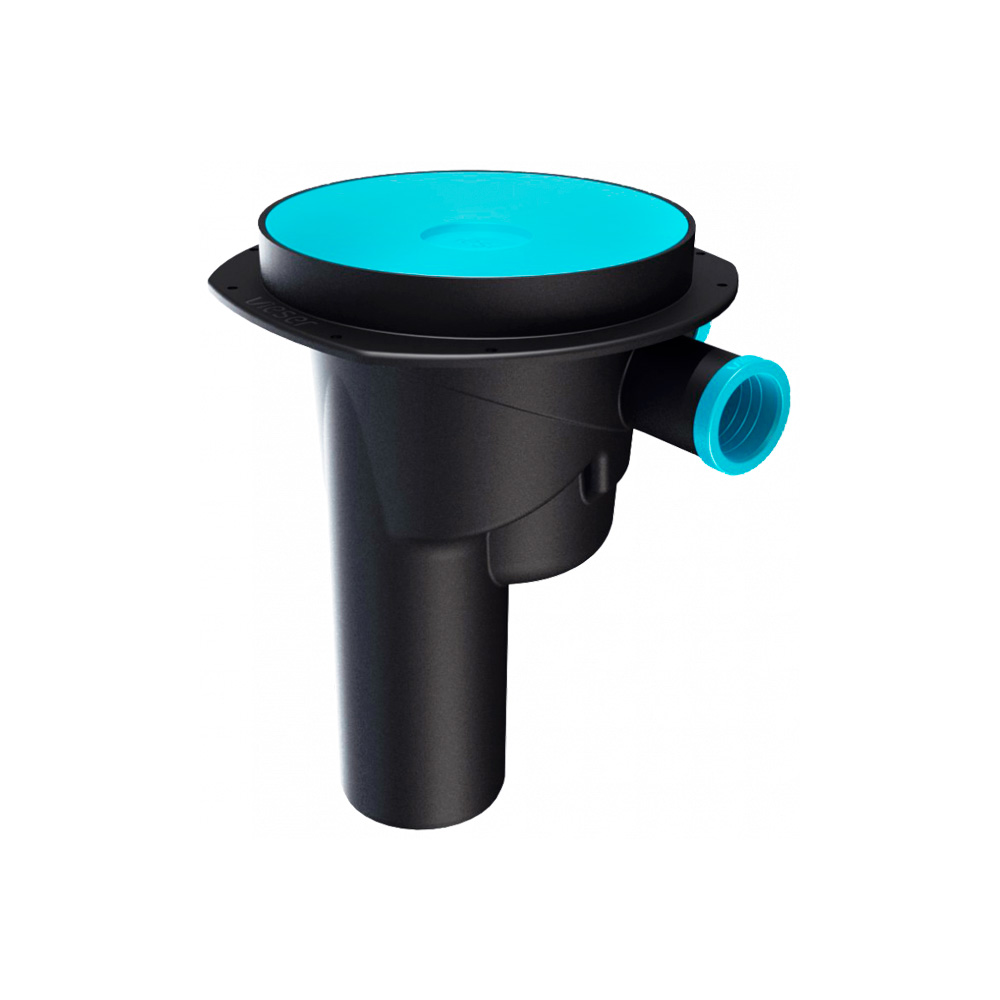

Vieser One vertical floor drain DN75 3x32/40

Vieser One vertical floor drain DN75 3x32/40

,
The Vieser One vertical floor drain DN75 has a 75 mm outlet and is compatible with wood and concrete floors. The drain has three 32/40 mm side inlets that can be opened.
  • Type approved
  • Removable water trap
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers
The package includes a drain, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring. Please see the structural drawings for different floor structures in our material bank.
Vieser no52630
EAN6418685526304
HVAC3315935
MaterialPolypropylene (PP)
Packaging (box/pallet)15/120
Discharge2.3 l/s

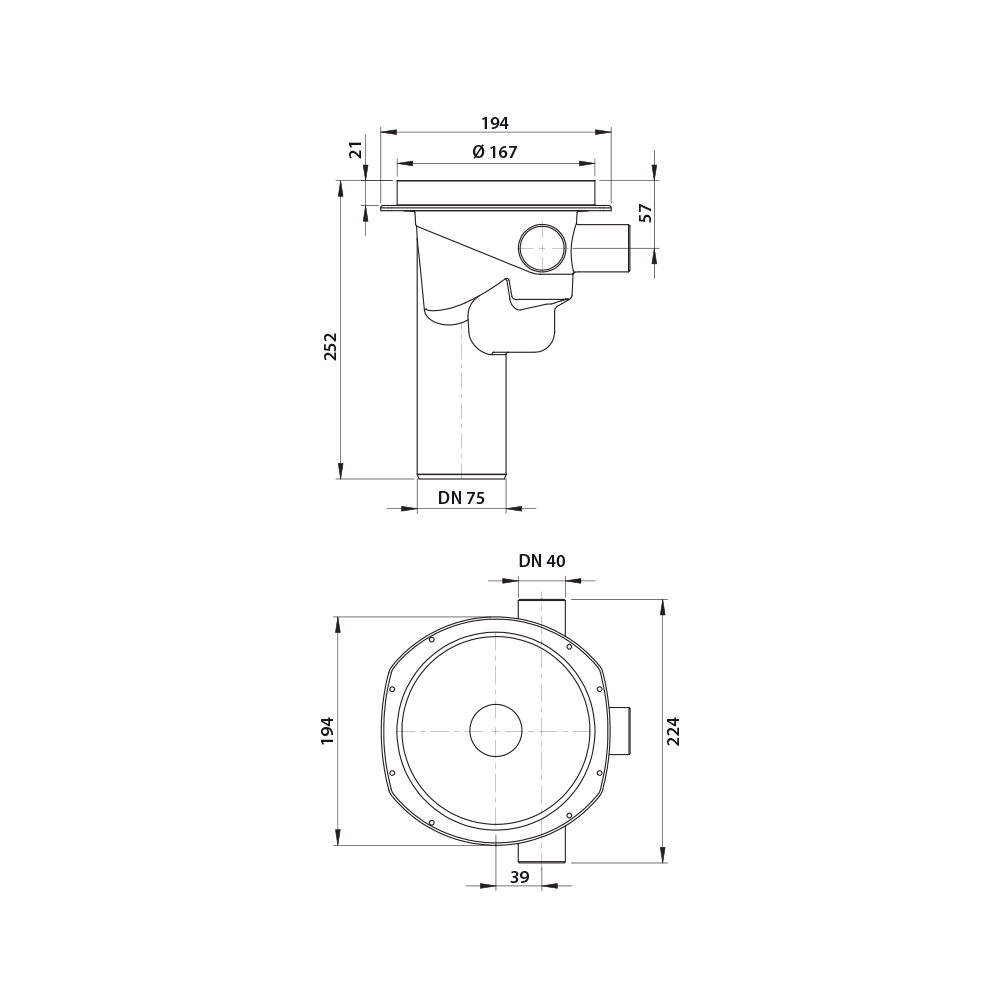

Product dimensions224 x 224 x 252mm
Product weight0.65 kg
Floor materialTile, Plastic mat, Mass

It is possible to shorten the outlet pipe.

Spare parts

52703
Vieser One casting cover kit

52701

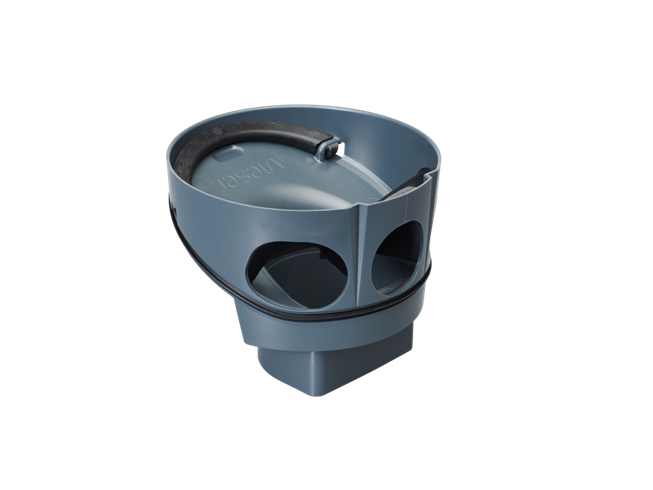

Vieser One water trap for drain

51901
Vieser standard clamping ring and lipsealing

Vieser One vertical floor drain DN75 3x32/40 - Vieser Suomi

Vieser One vertical floor drain DN75 3×32/40

FLOOR DRAINS

The Vieser One vertical floor drain DN75 has a 75 mm outlet and is compatible with wood and concrete floors. The drain has three 32/40 mm side inlets that can be opened.

  • Type approved
  • Removable water trap
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

The package includes a drain, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring.

Please see the structural drawings for different floor structures in our material bank.

Read more

It is possible to shorten the outlet pipe.

Avainlippu
Vieser no52630
EAN6418685526304
LVI3315935
MaterialPolypropylene (PP)
Packaging (box/pallet)15/120
Discharge2.3 l/s
Product dimensions224 x 224 x 252mm
Product weight0.65 kg
Floor materialTile, Plastic mat, Mass
