Vieser round grating Ø150

Vieser round grating Ø150

,

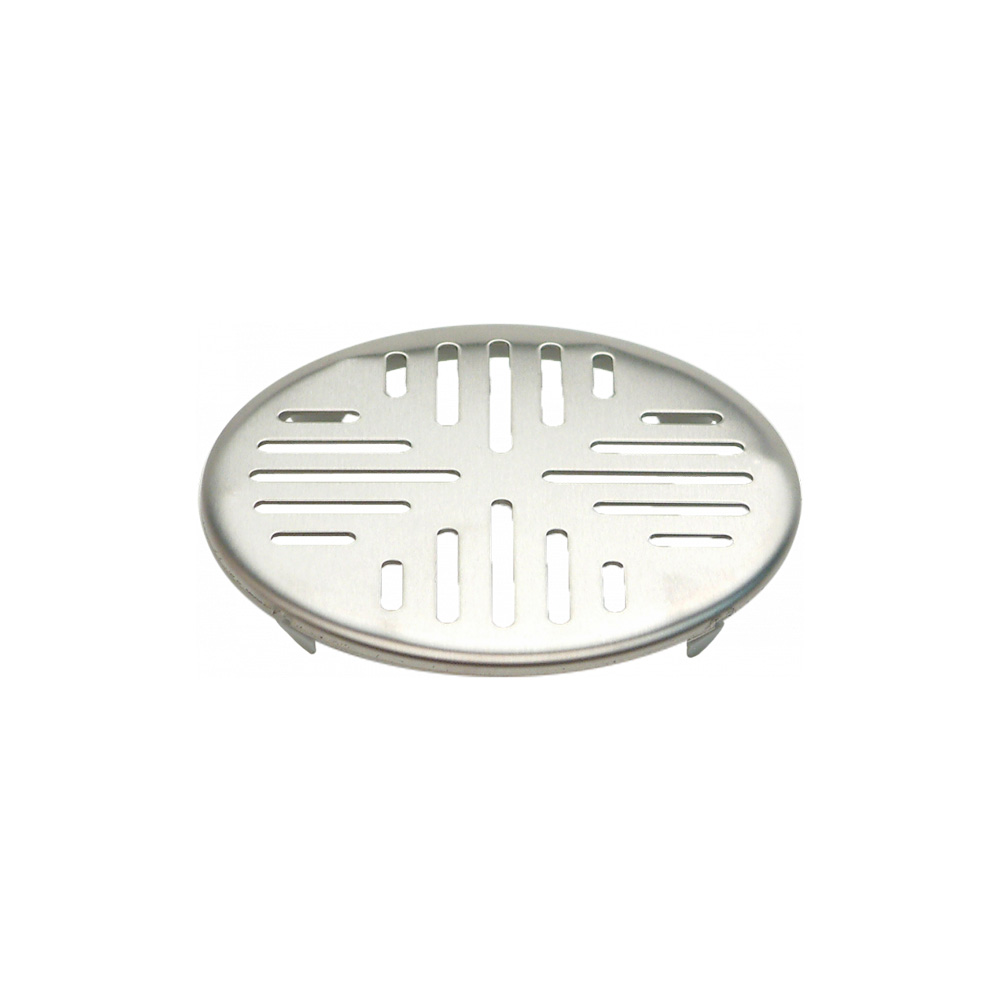

The Vieser round grating is a stainless steel floor drain grating that does not require a separate frame.
  • Compatible with all Vieser floor drains
  • In the case of a vinyl floor, the grating is installed into the clamping ring.
  • In the case of a tiled floor, a distance ring (Vieser no 51206) is installed underneath the grating. The ring serves as the grating frame.
The package contains a round grating.
Vieser no51273
EAN6418685512734
HVAC3315902
MaterialStainless steel (AISI 304)
Durability300 kg
Packaging (box/pallet)20/800

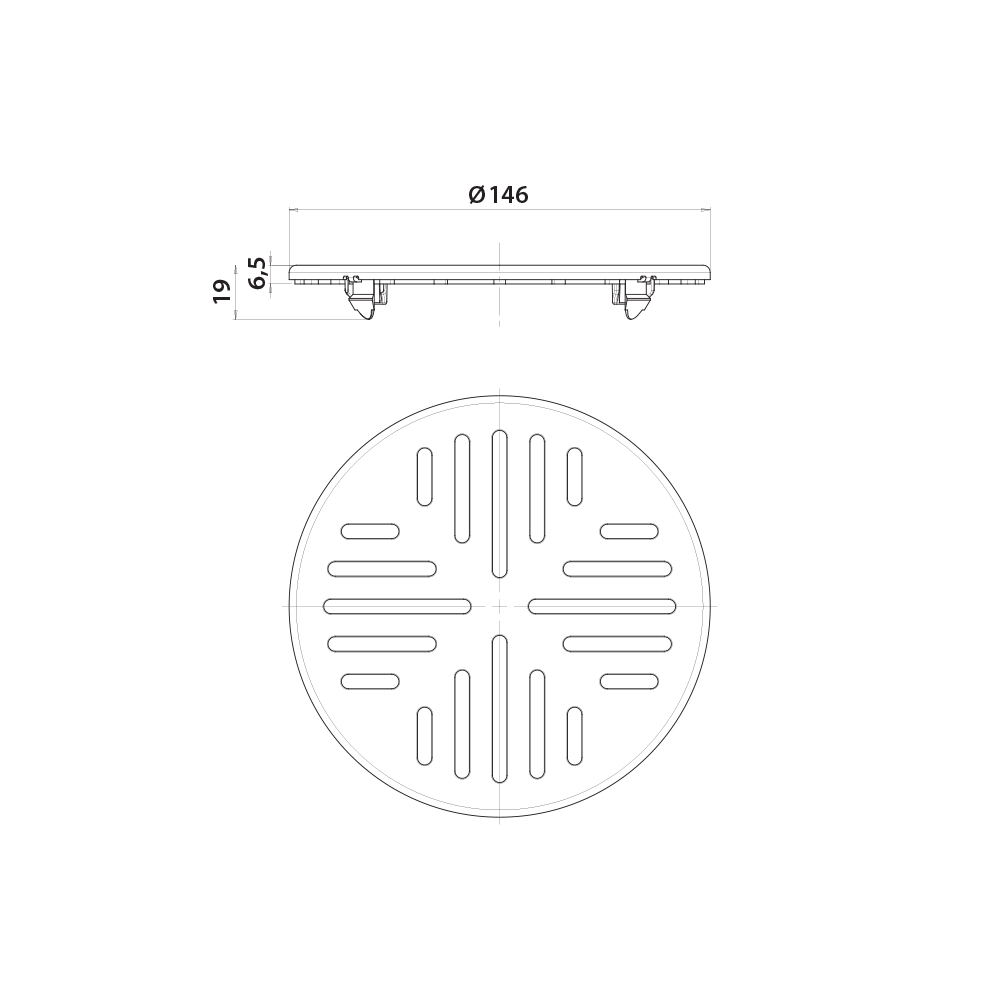

Product dimensions146 x 146 x 19mm
Product weight0.2 kg
Vieser round grating Ø150 - Vieser Suomi

Vieser round grating Ø150

ROUND GRATINGS

The Vieser round grating is a stainless steel floor drain grating that does not require a separate frame.

  • Compatible with all Vieser floor drains
  • In the case of a vinyl floor, the grating is installed into the clamping ring.
  • In the case of a tiled floor, a distance ring (Vieser no 51206) is installed underneath the grating. The ring serves as the grating frame.

The package contains a round grating.

Avainlippu
Vieser no51273
EAN6418685512734
LVI3315902
MaterialStainless steel (AISI 304)
Durability300 kg
Packaging (box/pallet)20/800
Product dimensions146 x 146 x 19mm
Product weight0.2 kg

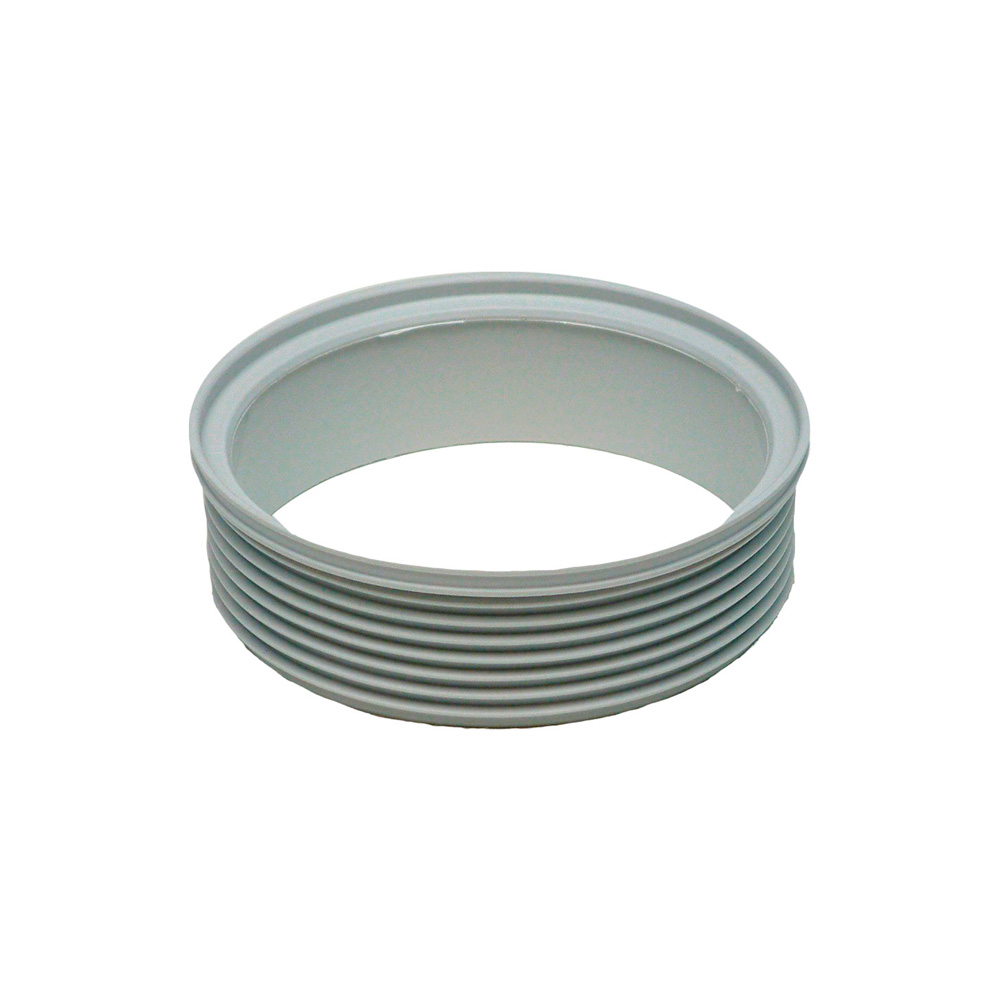

Vieser distance ring
